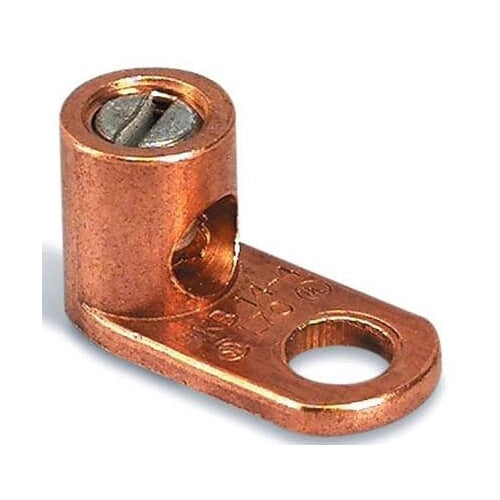

Blackburn L35 14-8 Copper Lug

Overview

Blackburn L35 14-8 Copper Lug

Product Specifications

• UPC: 78378613001
• Screw Type: Socket
• Material: Cold Forged Electrolytic Copper
• Number Of Pad Holes: 1
• Pad Size: 1/2 Inch Length x 3/8 Inch Width x 3/32 Inch Thickness
• Stud Size: 13/64 Inch
• Overall Length: 13/16 Inch
• Approval: UL 486A, CSA
• Additional Information: Screw Material Zinc Plated Steel
• Catalog Number: L35
• Brand Name: Blackburn
• Model: L
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG Solid
• Maximum Conductor Size: 8 AWG Stranded
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: TYPE L - COPPER SINGLE CONDUCTOR, ONE-HOLE MOUNT, SOCKET, SCREWDRIVER SLOT HEAD SCREWS, CONDUCTOR RANGE 14 SOL-8 STR, LENGTH 13/16 INCH, WIDTH 3/8 INCH, HEIGHT 3/8 INCH
• Category: Large Terminals & Connectors
• Full Technical Description: L Type; Copper Material; 13/16 Inch Overall Length; 14 AWG Solid min. Conductor Size; 8 AWG Stranded Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/2 Inch Pad Size; 1 Pad Hole(S); Screwdriver Slot Head Screw Type; Size 3/8 Inch Width X 3/8 Inch Height
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786130016
• SKU Name: l35 blkbrn
