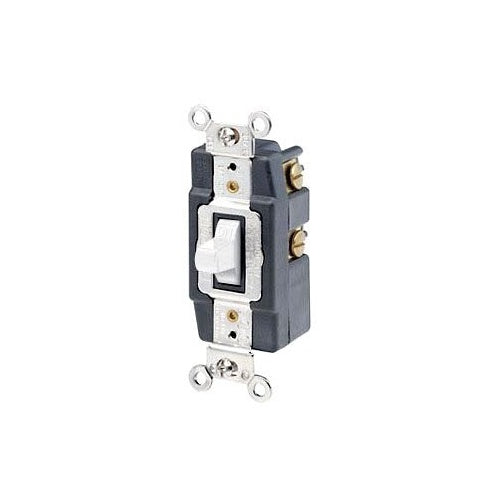

Leviton 1256-W 15A SPDT Momentary Contact Switch White

Overview

Leviton 1256-W 15A SPDT Momentary Contact Switch White

Product Specifications

• UPC: 07847788057
• Size: 1.37 Inch Width x 1.26 Inch Depth x 4.06 Inch Height
• Wiring: Back/Side
• Wall Plate Included: No
• Application: Industrial, Extra Heavy Duty, Specification Grade
• Approval: UL 20, CSA C22.2, NOM 057
• Catalog Number: 1256-W
• Current Rating: 15 Amp
• Voltage Rating: 120/277 Volt AC
• Power Rating: 1/2 HP at 120 Volt, 2 HP at 240 Volt
• Operation Type: Momentary, Center Off
• Contact Configuration: SPDT
• Handle Type: Toggle
• Color: White
• Catalog Description: 15-AMP 120/277-VOLT SINGLE-POLE TOGGLE AC QUIET SWITCH, WHITE
• Category: General Purpose Switches
• Full Technical Description: 1.37 Inch Width X 1.26 Inch Depth X 4.06 Inch Height Size; White Color; SPDT Contact Configuration; Momentary, Center Off Operation Type; Toggle Handle Type; UL 20, CSA C22.2, NOM 057 Approval; Industrial, Extra Heavy Duty, Specification Grade Application; 120/277 Volt AC Voltage Rating; 15 Amp Current Rating; 1/2 HP at 120 Volt, 2 HP at 240 Volt Power Rating; Back/Side Wiring; No Wall Plate Included
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Double Throw AC Switch
• Unspsc: 39122211
• UPC 12 Digit: 078477880579
• SKU Name: lev 1256w
