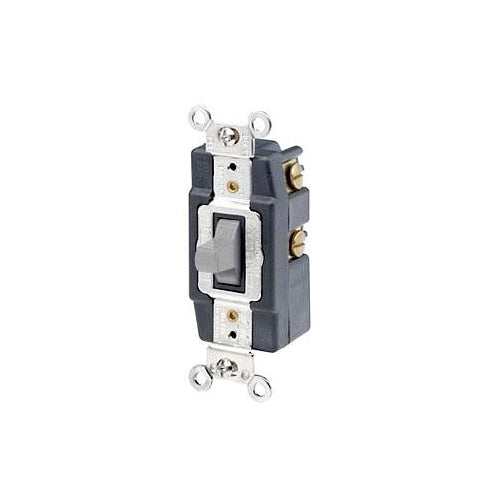

Leviton 1257-GY SPDT 20A Momentary Contact Ac Switch Gray

Overview

Leviton 1257-GY SPDT 20A Momentary Contact Ac Switch Gray

Product Specifications

• UPC: 07847785527
• Color: Gray
• Size: 1.37 Inch W x 1.26 Inch D x 4.06 Inch H
• Wiring: Back, Side
• Wall Plate Included: No
• Application: Industrial, Extra Heavy Duty, Specification Grade
• Approval: UL 20, CSA C22.2, NOM 057
• Additional Information: Applicable Standard ANSI C-73, NEMA WD-1/6; Operating Temperature -40 to 65 Deg C; Grounding Type Grounding; Strap Material Galvanized Steel; Base Material Thermoplastic; Toggle Material Polycarbonate; Contact Material Silver-Alloy
• Catalog Number: 1257-GY
• Model: 1257
• Current Rating: 20 Ampere
• Voltage Rating: 120/277 VAC
• Power Rating: 1 HP at 120 V, 2 HP at 240 to 277 V
• Operation Type: Momentary
• Contact Configuration: SPDT
• Handle Type: Toggle
• Catalog Description: 20 AMP, 120/277 VOLT, TOGGLE, DOUBLE THROW, CENTER OFF, MOMENTARY CONTACT, SINGLE-POLE AC QUIET SWITCH, INDUSTRIAL GRADE, GROUNDING, GRAY
• Category: General Purpose Switches
• Full Technical Description: 1.37 Inch W X 1.26 Inch D X 4.06 Inch H Size; Gray Color; SPDT Contact Configuration; Momentary Operation Type; Toggle Handle Type; UL 20, CSA C22.2, NOM 057 Approval; Industrial, Extra Heavy Duty, Specification Grade Application; 120/277 VAC Voltage Rating; 20 Ampere Current Rating; 1 HP at 120 V, 2 HP at 240 to 277 V Power Rating; Back, Side Wiring; No Wall Plate Included; Applicable Standard ANSI C-73, NEMA Wd-1/6; Operating Temperature -40 to 65 Deg C; Grounding Type Grounding; Strap Material Galvanized Steel; Base Material Thermoplastic; Toggle Material Polycarbonate; Contact Material Silver-Alloy; 1257 Model
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Double Throw Ac Switch
• Unspsc: 39122211
• UPC 12 Digit: 078477855270
• SKU Name: lev 1257gy
