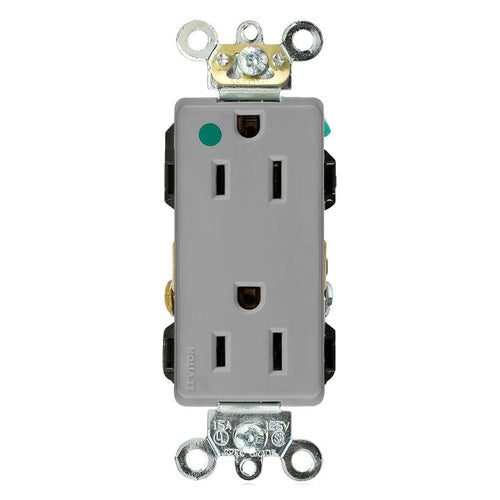

Leviton 16262-HGG Gray Duplex Receptacle-N5-15R

Overview

Leviton 16262-HGG Gray Duplex Receptacle-N5-15R

Product Specifications

• UPC: 07847781873
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Self Grounding
• Material: Nylon (Body/Face), Zinc Plated Steel (Yoke)
• Color: Gray
• Wiring: Back, Side
• Grade: Hospital, Extra Heavy Duty
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Applicable Standard ANSI C73, NEMA WD-6; Power Rating 1/2 HP; Contact Material Brass; Strap Material Steel; Temperature Rating -40 to 60 Deg C
• Catalog Number: 16262-HGG
• Brand Name: Decora Plus[TM]
• Model: 16262
• Type: Duplex, Decorator
• Constructional Feature: Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Catalog Description: 15 AMP, 125 VOLT, DECORA PLUS DUPLEX RECEPTACLE, HOSPITAL GRADE, SELF GROUNDING, STRAIGHT BLADE, GRAY
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex, Decorator Type; Nylon (Body/Face), Zinc Plated Steel (Yoke) Material; Gray Color; 5-15R Configuration; 3 Wire(S); Hospital, Extra Heavy Duty Grade; UL 498, CSA C22.2, NOM 057 Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Self Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Decora PLUS[TM] Brand; Applicable Standard ANSI C73, NEMA Wd-6; Power Rating 1/2 HP; Contact Material Brass; Strap Material Steel; Temperature Rating -40 to 60 Deg C; 16262 Model
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477818732
• SKU Name: lev 16262hgg
