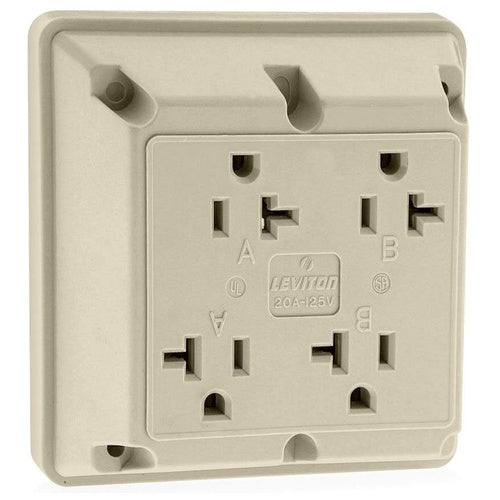

Leviton 21254-I Ivory Quaduplex Nema6-20R

Overview

Leviton 21254-I Ivory Quaduplex Nema6-20R

Product Specifications

• UPC: 07847783075
• Material: Nylon (Body/Face)
• Color: Ivory
• Grade: Industrial, Specification, Extra Heavy Duty
• Approval: UL 498, CSA C22.2
• Additional Information: Applicable Standard ANSI, NEMA WD-1/6; Operating Temperature -40 to 60 Deg C; Terminal Screw Material Brass; Strap Material Steel
• Catalog Number: 21254-I
• Model: 21254
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: 20 AMP, 125 VOLT, INDUSTRIAL SERIES EXTRA HEAVY DUTY GRADE, 4-IN-1 RECEPTACLE, STRAIGHT BLADE, GROUNDING, IVORY
• Category: Receptacles & Surge Protectors
• Full Technical Description: Nylon (Body/Face) Material; Ivory Color; 5-20R Configuration; 3 Wire(S); Industrial, Specification, Extra Heavy Duty Grade; UL 498, CSA C22.2 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Applicable Standard ANSI, NEMA Wd-1/6; Operating Temperature -40 to 60 Deg C; Terminal Screw Material Brass; Strap Material Steel; 21254 Model
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Quad Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477830758
• SKU Name: lev 21254i

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
