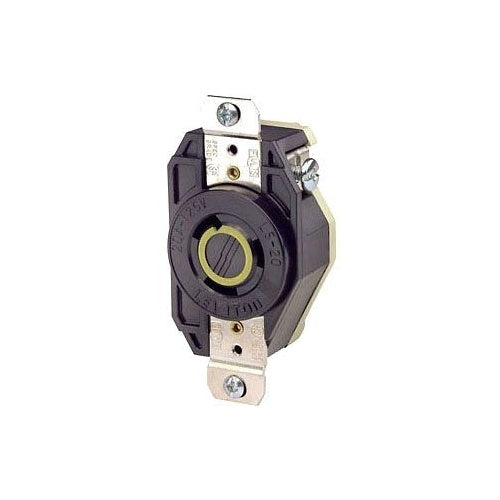

Leviton 2310 Locking Flush Receptacle

Overview

Leviton 2310 Locking Flush Receptacle

Product Specifications

• UPC: 07847780110
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Body), Ultramid (Face), Valox (Base)
• Color: Black
• Wiring: Back, Side
• Mounting: Flush
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 14 to 8 AWG (Solid/Stranded Copper); Contact Material Brass; Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard WD-1/6, ANSI C73, Federal Specification WC-596
• Catalog Number: 2310
• Brand Name: Leviton
• Type: Single
• Constructional Feature: Impact/Chemical Resistant
• Configuration: L5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: 20 AMP, 125 VOLT, FLUSH MOUNTING GROUNDING LOCKING RECEPTACLE, INDUSTRIAL GRADE, GROUNDING, V-0-MAX, BLACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Nylon (Body), Ultramid (Face), Valox (Base) Material; Black Color; L5-20R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; Flush Mounting; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact/Chemical Resistant; Back, Side Wiring; V-O-Max [R] Brand; Wire Size 14 to 8 AWG (Solid/Stranded Copper); Contact Material Brass; Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard Wd-1/6, ANSI C73, Federal Specification WC-596
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477801109
• SKU Name: lev 2310

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
