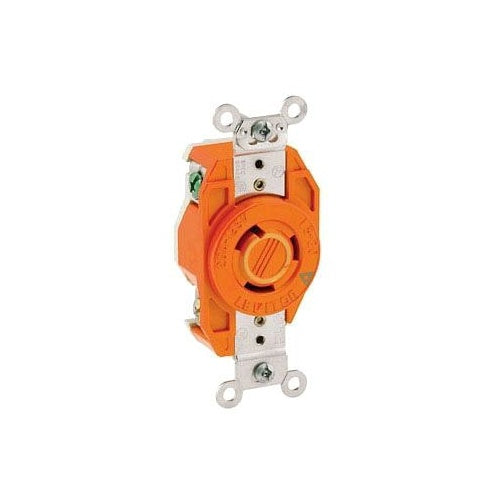

Leviton 2310-IG Locking Flush Receptacle

Overview

Leviton 2310-IG Locking Flush Receptacle

Product Specifications

• UPC: 07847780111
• Material: Valox 357
• Color: Orange
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 498, CSA C22.2, NOM
• Additional Information: APPLICABLE STANDARD ANSI C 73, NEMA WD 1 AND WD 6; APPLICATION INDUSTRIAL; OPERATING TEMPERATURE -40 TO 60 DEG C
• Catalog Number: 2310-IG
• Configuration: L5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Face Outer Diameter: 2.38 Inch
• Catalog Description: 20 AMP, 125 VOLT, FLUSH MOUNTING LOCKING RECEPTACLE, INDUSTRIAL GRADE, ISOLATED GROUND, V-0-MAX, ORANGE
• Category: Receptacles & Surge Protectors
• Full Technical Description: Valox 357 Material; Orange Color; L5-20R Configuration; 3 Wire(S); UL 498, CSA C22.2, NOM Approval; 125 Volt Voltage Rating; Flush Mount Mounting; 20 Amp Current Rating; Isolated Grounding; 2 Pole(S); Back, Side Wiring; 2.38 Inch Face Outer Diameter; Applicable Standard ANSI C 73, NEMA Wd 1 and Wd 6; Application Industrial; Operating Temperature -40 to 60 Deg C
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477801116
• SKU Name: lev 2310ig

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
