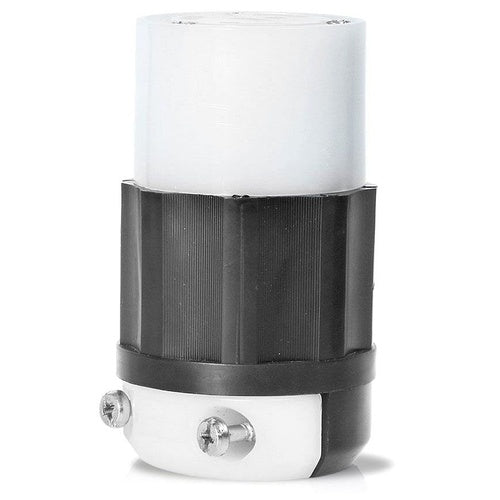

Leviton 2313 Locking Connector L5-20R

Overview

Leviton 2313 Locking Connector L5-20R

Product Specifications

• UPC: 07847780097
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Black, White
• Cord Size: 0.385 to 0.78 Inch
• Approval: UL 498, CSA C22.2, NOM 057, FS WC596
• Additional Information: Temperature Rating -40 to 60 Deg C; Wire Size 18 to 10 AWG; Application Industrial
• Catalog Number: 2313
• Brand Name: Black & White[R]
• Type: Polarized
• Constructional Feature: Abrasion Resistant, Chemical Resistant, Impact Resistant
• Configuration: L5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Catalog Description: 20 AMP, 125 VOLT, NEMA L5-20R, 2P, 3W, LOCKING CONNECTOR, INDUSTRIAL GRADE, GROUNDING- BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black, White Color; L5-20R Configuration; 3 Wire(S); UL 498, CSA C22.2, NOM 057, FS WC596 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Abrasion Resistant, Chemical Resistant, Impact Resistant; 0.385 to 0.78 Inch Cord Size; Temperature Rating -40 to 60 Deg C; Wire Size 18 to 10 AWG; Application Industrial
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 078477800973
• SKU Name: lev 2313

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
