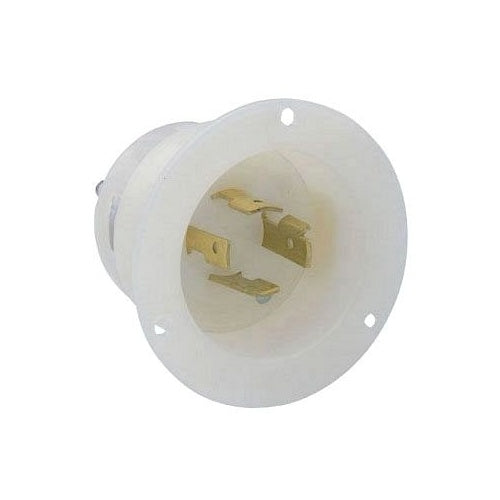

Leviton 2415 Flanged Inlet

Overview

Leviton 2415 Flanged Inlet

Product Specifications

• UPC: 07847780626
• Material: Nylon (Body/Face)
• Color: White
• Approval: UL 498, CSA C22.2, NOM 057, FS WC596
• Additional Information: Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 60 Deg C; Application Industrial
• Catalog Number: 2415
• Brand Name: Black & White[R]
• Configuration: L14-20P
• Voltage Rating: 125/250 V
• Current Rating: 20 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Grounding
• Catalog Description: 20 AMP, 125/250 VOLT, NEMA L14-20P, 3P, 4W, FLANGED INLET LOCKING RECEPTACLE, INDUSTRIAL GRADE, GROUNDING - WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon (Body/Face) Material; White Color; L14-20P Configuration; 4 Wire(S); UL 498, CSA C22.2, NOM 057, FS WC596 Approval; 125/250 V Voltage Rating; 20 Ampere Current Rating; Grounding; 3 Pole(S); Black & WHITE[R] Brand; Applicable Standard ANSI C-73, NEMA Wd-6; Operating Temperature -40 to 60 Deg C; Application Industrial
• Made In Usa: Yes
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 078477806265
• SKU Name: lev 2415

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
