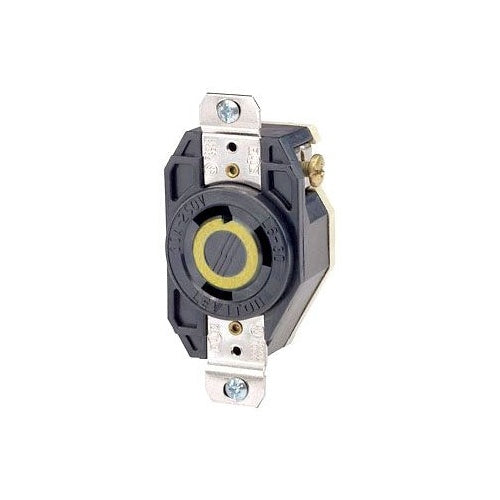

Leviton 2610 Locking Flush Receptacle

Overview

Leviton 2610 Locking Flush Receptacle

Product Specifications

• UPC: 07847780947
• Number Of Wires: 3
• Ground Type: Grounding
• Face Outer Diameter: 1.56 Inch
• Material: Nylon (Body), Ultramid (Face), Valox (Base), Valox 357 (Cover)
• Color: Black
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 498, CSA C22.2
• Additional Information: Overall Dimension 3.63 Inch Length x 1.69 Inch Width x 1.31 Inch Depth; Cord Size 0.595 to 1.15 Inch; Dielectric Voltage Rating 2000 Volt; Power Rating 2 HP; Contact Material Brass; Screw Material Chromated Brass; Strap/Clamp Material Nickel Plated Brass;
• Catalog Number: 2610
• Brand Name: Black & White[R], V-O-Max[R]
• Type: Single Locking
• Constructional Feature: Corrosive
• Configuration: L5-30R
• Voltage Rating: 125 Volt AC
• Current Rating: 30 Amp
• Number Of Poles: 2
• Catalog Description: 30 AMP, 125 VOLT, FLUSH MOUNTING LOCKING RECEPTACLE, INDUSTRIAL GRADE, GROUNDING, V-0-MAX, BLACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon (Body), Ultramid (Face), Valox (Base), Valox 357 (Cover) Material; Black Color; L5-30R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; Flush Mount Mounting; 30 Amp Current Rating; Grounding; 2 Pole(S); Corrosive; Back, Side Wiring; 1.56 Inch Face Outer Diameter; V-O-Max [R] Brand; Overall Dimension 3.63 Inch Length X 1.69 Inch Width X 1.31 Inch Depth; Cord Size 0.595 to 1.15 Inch; Dielectric Voltage Rating 2000 Volt; Power Rating 2 HP; Contact Material Brass; Screw Material Chromated Brass; Strap/Clamp Material Nickel Plated Brass; Wire Size 14 to 8 AWG; Operating Temperature Rating -40 to 60 Deg C; Applicable Standard ANSI C73, NOM 057, Federal Specification WC596, ISO 9001
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477809471
• SKU Name: lev 2610
