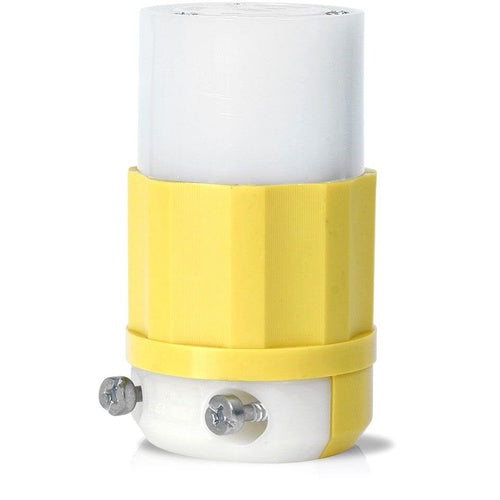

Leviton 2613-CY Locking Connector L5-30R

Overview

Leviton 2613-CY Locking Connector L5-30R

Product Specifications

• UPC: 07847780786
• Ground Type: GROUNDING
• Material: NYLON
• Color: YELLOW, WHITE
• Cord Size: 0.385 TO 0.93 INCH
• Approval: UL 498, CSA C22.2
• Additional Information: APPLICATION INDUSTRIAL; OPERATING TEMPERATURE -40 TO 60 DEG C; MATERIAL THERMOPLASTIC (BACK COVER), SOLID BRASS (BLADE/CONTACT), STEEL (ASSEMBLY SCREW)
• Catalog Number: 2613-CY
• Brand Name: LEVITON[R]
• Constructional Feature: ABRASION RESISTANT, CHEMICAL RESISTANT, IMPACT RESISTANT
• Configuration: L5-30R
• Voltage Rating: 125 V
• Current Rating: 30 AMPERE
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: 30 AMP, 125 VOLT, NEMA L5-30R, 2P, 3W, LOCKING CONNECTOR, INDUSTRIAL GRADE, GROUNDING - YELLOW-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Impact Modified Nylon Material; Yellow and White Color; L5-30R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 VAC Voltage Rating; 30 Ampere Current Rating; Grounding; 2 Pole(S); Severe Impact, Abrasion and Chemical Resistant; 0.385 to 0.93 Inch Cord Size; Size 1.84 Inch Dia X 2.08 Inch H; Wire Size 16 to 8 AWG; Blade/Contact Material Solid Brass; Temperature Rating -40 to 60 Deg C; Application Industrial Grade, Dry Environment; Applicable Standard ANSI C-73, Federal Specification W-C 596, ISO 9001
• Made In Usa: Yes
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 078477807866
• SKU Name: lev 2613cy
