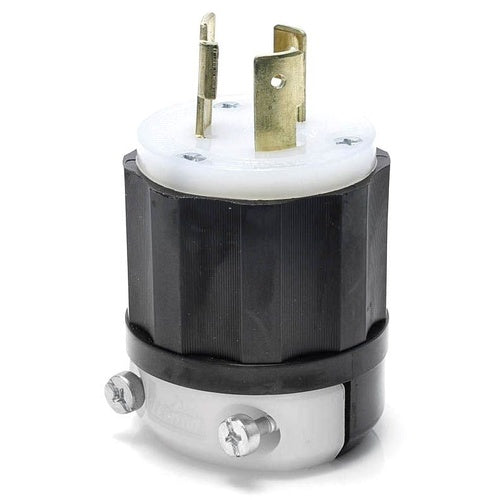

Leviton 2621 Locking Plug L6-30P

Overview

Leviton 2621 Locking Plug L6-30P

Product Specifications

• UPC: 07847780795
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Super Tough Nylon (Body), Solid Brass (Blade/Contact)
• Color: Black, White
• Cord Size: 0.385 to 0.86 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Temperature Rating -40 to 60 Deg C; Wire Size 16 to 8 AWG; Application Industrial
• Catalog Number: 2621
• Brand Name: Black & White[R]
• Type: Polarized
• Constructional Feature: Impact Resistant, Chemical Resistant, Abrasion Resistant
• Configuration: L6-30P
• Voltage Rating: 250 V
• Current Rating: 30 Ampere
• Number Of Poles: 2
• Catalog Description: 30 AMP, 250 VOLT, NEMA L6-30P, 2P, 3W, LOCKING PLUG, INDUSTRIAL GRADE, GROUNDING - BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Super Tough Nylon (Body), Solid Brass (Blade/Contact) Material; Black, White Color; L6-30P Configuration; 3 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 250 V Voltage Rating; 30 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant, Chemical Resistant, Abrasion Resistant; 0.385 to 0.86 Inch Cord Size; Temperature Rating -40 to 60 Deg C; Wire Size 16 to 8 AWG; Application Industrial
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 078477807958
• SKU Name: lev 2621

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
