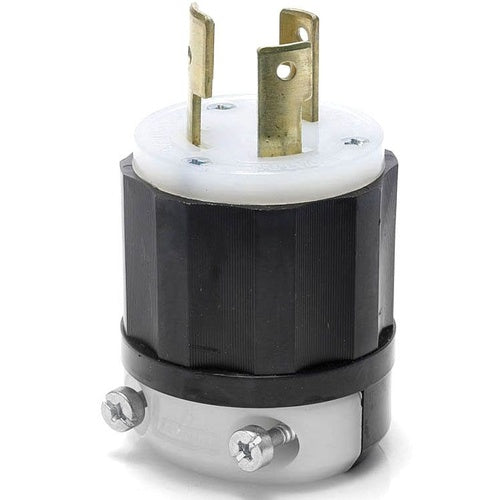

Leviton 2661 Locking Plug L10-30P

Overview

Leviton 2661 Locking Plug L10-30P

Product Specifications

• UPC: 07847780791
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Material: Super Tough Nylon (Body), Solid Brass (Blade/Contact)
• Color: Black, White
• Cord Size: 0.385 to 0.93 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Temperature Rating -40 to 60 Deg C; Wire Size 16 to 8 AWG; Application Industrial
• Catalog Number: 2661
• Brand Name: Black & White[R]
• Type: Non-Polarized
• Constructional Feature: Abrasion Resistant, Chemical Resistant, Impact Resistant
• Configuration: L10-30P
• Voltage Rating: 125/250 V
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Catalog Description: 30 AMP, 125/250 VOLT, NEMA L10-30P, 3P, 3W, LOCKING PLUG, INDUSTRIAL GRADE, NON-GROUNDING - BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Non-Polarized Type; Super Tough Nylon (Body), Solid Brass (Blade/Contact) Material; Black, White Color; L10-30P Configuration; 3 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 125/250 V Voltage Rating; 30 Ampere Current Rating; Non-Grounding; 3 Pole(S); Abrasion Resistant, Chemical Resistant, Impact Resistant; 0.385 to 0.93 Inch Cord Size; Black & WHITE[R] Brand; Temperature Rating -40 to 60 Deg C; Wire Size 16 to 8 AWG; Application Industrial
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 078477807910
• SKU Name: lev 2661
