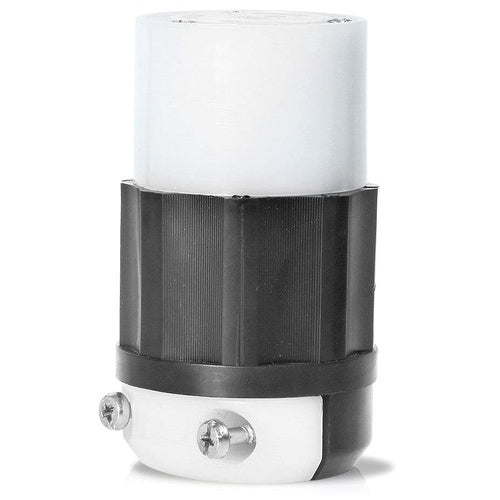

Leviton 2683 Locking Connector L12-30R

Overview

Leviton 2683 Locking Connector L12-30R

Product Specifications

• UPC: 07847780776
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Black, White
• Cord Size: 0.385 to 0.86 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 60 Deg C; Wire Gauge 16 to 8 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Zinc Plated Steel (Assembly Screw); Application Industrial
• Catalog Number: 2683
• Brand Name: Black & White[R]
• Type: Non-Polarized
• Constructional Feature: Impact Resistant, Abrasion Resistant, Chemical Resistant
• Configuration: L12-30R
• Voltage Rating: 480 V 3-Phase
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Catalog Description: 30 AMP, 480 VOLT 3-PHASE, NEMA L12-30R, 3P, 3W, LOCKING CONNECTOR, INDUSTRIAL GRADE, NON-GROUNDING - BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Non-Polarized Type; Nylon Material; Black, White Color; L12-30R Configuration; 3 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 480 V 3-Phase Voltage Rating; 30 Ampere Current Rating; Non-Grounding; 3 Pole(S); Impact Resistant, Abrasion Resistant, Chemical Resistant; 0.385 to 0.86 Inch Cord Size; Black & WHITE[R] Brand; Applicable Standard ANSI C-73, NEMA Wd-6; Operating Temperature -40 to 60 Deg C; Wire Gauge 16 to 8 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Zinc Plated Steel (Assembly Screw); Application Industrial
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 078477807767
• SKU Name: lev 2683
