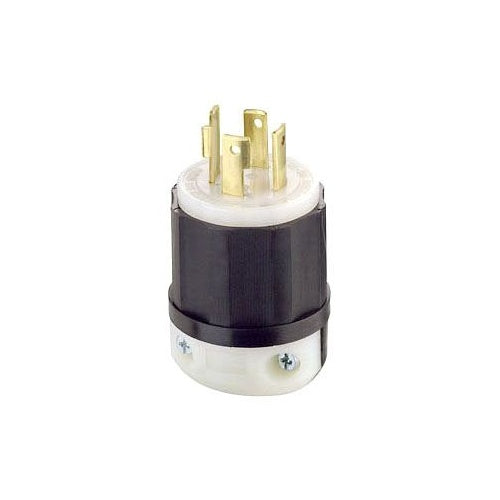

Leviton 2741 Locking Plug L17-30P

Overview

Leviton 2741 Locking Plug L17-30P

Product Specifications

• UPC: 07847780839
• Number Of Wires: 4
• Ground Type: Grounding
• Material: Impact Modified Nylon
• Color: Black/White
• Cord Size: 0.595 to 1.15 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Wire Size 18 to 10 AWG; Blade Material Solid Brass; Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard WD-1/6, ANSI C73, Federal Specification WC-596
• Catalog Number: 2741
• Brand Name: Leviton
• Type: Polarized
• Constructional Feature: Impact/Chemical/Abrasion Resistant
• Configuration: L17-30P
• Voltage Rating: 600 Volt 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 3
• Catalog Description: 30 AMP, 600 VOLT 3-PHASE, NEMA L17-30P, 3P, 4W, LOCKING PLUG, INDUSTRIAL GRADE, GROUNDING - BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Impact Modified Nylon Material; Black/White Color; L17-30P Configuration; 4 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 600 Volt 3-Phase Voltage Rating; 30 Amp Current Rating; Grounding; 3 Pole(S); Impact/Chemical/Abrasion Resistant; 0.595 to 1.15 Inch Cord Size; Wire Size 18 to 10 AWG; Blade Material Solid Brass; Temperature Rating -40 to 60 Deg C; Application Industrial; Applicable Standard Wd-1/6, ANSI C73, Federal Specification WC-596
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 078477808399
• SKU Name: lev 2741
