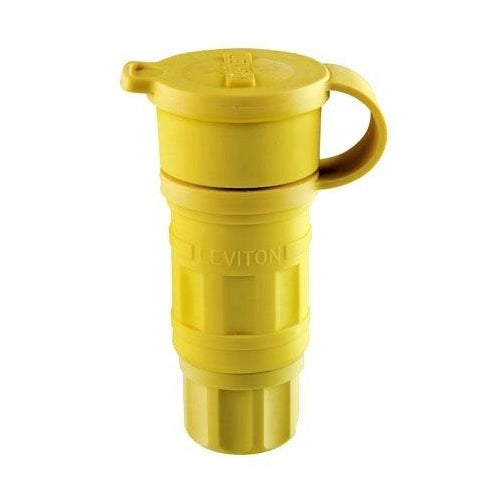

Leviton 27W49 Nema L7-20R Locking Connector & Cap

Overview

Leviton 27W49 Nema L7-20R Locking Connector & Cap

Product Specifications

• UPC: 07847796776
• Number Of Wires: 3
• Ground Type: Grounding
• Material: EPTR Rubber Body, Nylon Interior/Wire Module
• Color: Yellow
• Cord Size: 0.375 to 0.875 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Size 5.52 Inch Length x 2.5 Inch Width; Blade/Contact Nickel Plated Brass; Assembly Screw Material 300 Stainless Steel; Operating Temperature -40 to 60 Deg C; Applicable Standard ANSI C-73, NEMA WD-6
• Catalog Number: 27W49
• Brand Name: Wetguard[R]
• Type: Polarized
• Constructional Feature: Corrosion Resistant, Water Tight
• Configuration: L7-20R
• Voltage Rating: 277 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: 20-AMP, 277-VOLT, NEMA L7-20R, 2P, 3W, LOCKING CONNECTOR, INDUSTRIAL GRADE, GROUNDING, WETGUARD, YELLOW
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Eptr Rubber Body, Nylon Interior/Wire Module Material; Yellow Color; L7-20R Configuration; 3 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 277 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Corrosion Resistant, Water Tight; 0.375 to 0.875 Inch Cord Size; WETGUARD[R] Brand; Size 5.52 Inch Length X 2.5 Inch Width; Blade/Contact Nickel Plated Brass; Assembly Screw Material 300 Stainless Steel; Operating Temperature -40 to 60 Deg C; Applicable Standard ANSI C-73, NEMA Wd-6
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 078477967768
• SKU Name: lev 27w49
