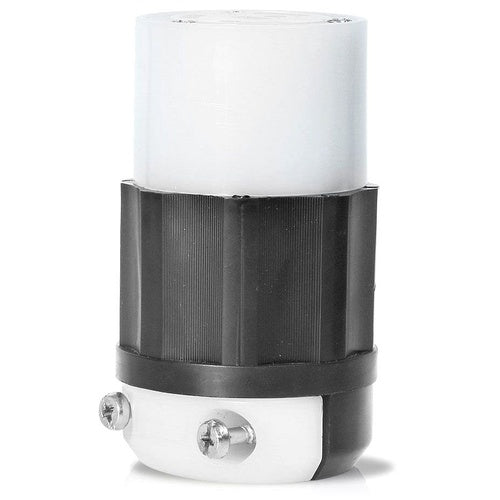

Leviton 2833 Locking Connector L23-30R

Overview

Leviton 2833 Locking Connector L23-30R

Product Specifications

• UPC: 07847780862
• Number Of Wires: 5
• Ground Type: Grounding
• Material: Nylon
• Color: Black, White
• Cord Size: 0.595 to 1.15 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Applicable Standard ANSI C-73, NEMA WD-6; Operating Temperature -40 to 60 Deg C; Wire Gauge 14 to 8 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Zinc Plated Steel (Assembly Screw); Application Industrial
• Catalog Number: 2833
• Brand Name: Black & White[R]
• Type: Polarized
• Constructional Feature: Impact Resistant, Abrasion Resistant, Chemical Resistant
• Configuration: L23-30R
• Voltage Rating: 347/600 V Star 3-Phase
• Current Rating: 30 Ampere
• Number Of Poles: 4
• Catalog Description: 30 AMP, 347/600 VOLT 3PY, NEMA L23-30R, 4P, 5W, LOCKING CONNECTOR, INDUSTRIAL GRADE, GROUNDING - BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black, White Color; L23-30R Configuration; 5 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 347/600 V Star 3-Phase Voltage Rating; 30 Ampere Current Rating; Grounding; 4 Pole(S); Impact Resistant, Abrasion Resistant, Chemical Resistant; 0.595 to 1.15 Inch Cord Size; Black & WHITE[R] Brand; Applicable Standard ANSI C-73, NEMA Wd-6; Operating Temperature -40 to 60 Deg C; Wire Gauge 14 to 8 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact), Zinc Plated Steel (Assembly Screw); Application Industrial
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 078477808627
• SKU Name: lev 2833
