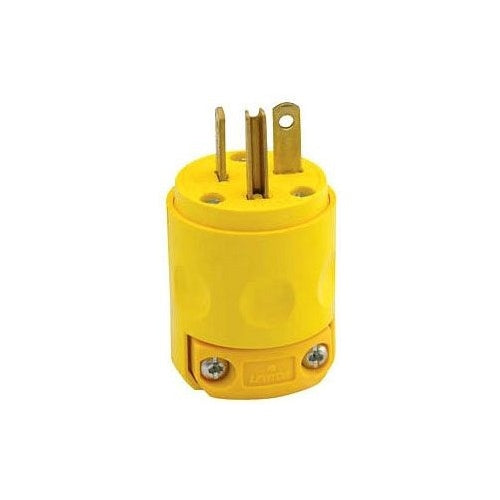

Leviton 520PV 2P3W 20A125V Grounding Plug Yellow

Overview

Leviton 520PV 2P3W 20A125V Grounding Plug Yellow

Product Specifications

• UPC: 07847784188
• Ground Type: Grounding
• Cord Size: 0.245 to 0.7 Inch
• Material: PVC
• Color: Yellow
• Grade: Commercial
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: OPERATING TEMPERATURE -40 TO 60 DEG C; APPLICABLE STANDARD ANSI, NEMA WD 6; BLADE/CONTACT MATERIAL BRASS; ASSEMBLY SCREW MATERIAL ZINC PLATED STEEL
• Catalog Number: 520PV
• Type: Polarized
• Constructional Feature: Moisture, Chemical, Abuse Resistant
• Configuration: 5-20P
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: 20 AMP, 125 VOLT, PLUG, GROUNDING, YELLOW
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; PVC Material; Yellow Color; 5-20P Configuration; 3 Wire(S); Commercial Grade; UL 498, CSA C22.2, NOM 057 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Moisture, Chemical, Abuse Resistant; 0.245 to 0.7 Inch Cord Size; Operating Temperature -40 to 60 Deg C; Applicable Standard ANSI, NEMA Wd 6; Blade/Contact Material Brass; Assembly Screw Material Zinc Plated Steel
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 078477841884
• SKU Name: lev 520pv
