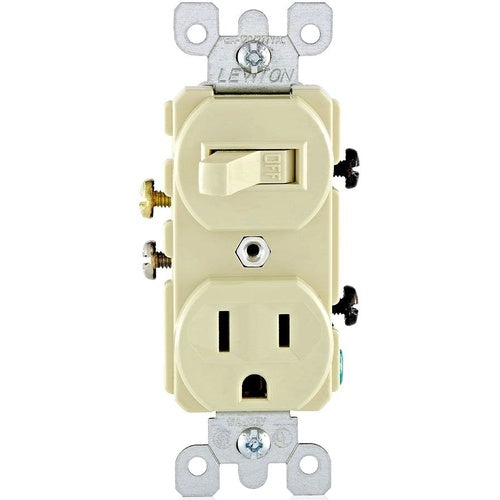

Leviton 5225-I Comb-Sp Ac Switch & Receptacle 5-15R

Overview

Leviton 5225-I Comb-Sp Ac Switch & Receptacle 5-15R

Product Specifications

• UPC: 07847722660
• Color: Ivory
• Application: Commercial
• Approval: UL 20, CSA C22.2, NOM
• Additional Information: APPLICABLE STANDARD ANSI, NEMA WD 1, NEMA WD 6; POWER RATING 1/2 HP AT 120 V; OPERATING TEMPERATURE -40 TO 65 DEG C
• Catalog Number: 5225-I
• Brand Name: Decora[R]
• Type: Duplex
• Switch Type: 120 Volt AC 15 Amp 1-Pole Toggle
• Receptacle Type: NEMA 5-15R 125 Volt AC 15 Amp 1-Pole with Grounding Straight Blade
• Wiring: Side
• Wall Plate Included: No
• Material: Thermoplastic
• Catalog Description: LEVITON 5225 15 AMP, 120 VOLT, DUPLEX STYLE COMBINATION SINGLE POLE SWITCH/RECEPTACLE, GROUNDING, IVORY
• Category: Combination Devices
• Full Technical Description: Duplex Type; Thermoplastic Material; Ivory Color; UL 20, CSA C22.2, NOM Approval; Commercial Application; 120 Volt AC 15 Amp 1-Pole Toggle Switch Type; Side Wiring; No Wall Plate Included; NEMA 5-15R 125 Volt AC 15 Amp 1-Pole With Grounding Straight Blade Receptacle Type; DECORA[R] Brand; Applicable Standard ANSI, NEMA Wd 1, NEMA Wd 6; Power Rating 1/2 HP at 120 V; Operating Temperature -40 to 65 Deg C
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Combination Switch/Receptacle
• Unspsc: 39122231
• UPC 12 Digit: 078477226605
• SKU Name: lev 5225i
