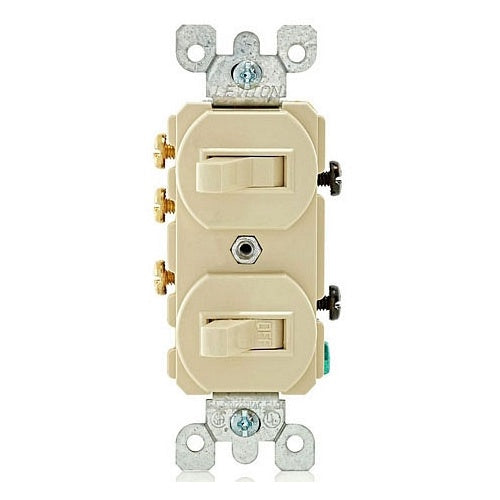

Leviton 5241-I Cmb-Sp & 3-Way 15A277 Ac Switch

Overview

Leviton 5241-I Cmb-Sp & 3-Way 15A277 Ac Switch

Product Specifications

• UPC: 07847722920
• Color: Ivory
• Application: Commercial
• Approval: UL 20, CSA C22.2, NOM
• Additional Information: Applicable Standard ANSI; Strap Material Steel; Power Rating 1/2 HP at 120 V; Temperature Rating -40 to 65 Deg C
• Catalog Number: 5241-I
• Model: Series 5241
• Type: Duplex
• Switch 1 Type: 120/277 VAC 15 Ampere 3-Way/1-Pole with Non-Grounding Toggle
• Switch 2 Type: 120/277 VAC 15 Ampere 3-Way/1-Pole with Non-Grounding Toggle
• Wiring: Side
• Wall Plate Included: No
• Material: Thermoplastic
• Catalog Description: 15 AMP, 120/277 VOLT, DUPLEX STYLE SINGLE-POLE/3-WAY AC COMBINATION SWITCH, COMMERCIAL GRADE, IVORY
• Category: Combination Devices
• Full Technical Description: Duplex Type; Thermoplastic Material; Ivory Color; UL 20, CSA C22.2, NOM Approval; Commercial Application; Side Wiring; No Wall Plate Included; 120/277 VAC 15 Ampere 3-Way/1-Pole With Non-Grounding Toggle Switch 1 Type; 120/277 VAC 15 Ampere 3-Way/1-Pole With Non-Grounding Toggle Switch 2 Type; Applicable Standard ANSI; Strap Material Steel; Power Rating 1/2 HP at 120 V; Temperature Rating -40 to 65 Deg C; SERIES 5241 Model
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Combination Switch/Switch
• Unspsc: 39122231
• UPC 12 Digit: 078477229200
• SKU Name: lev 5241i
