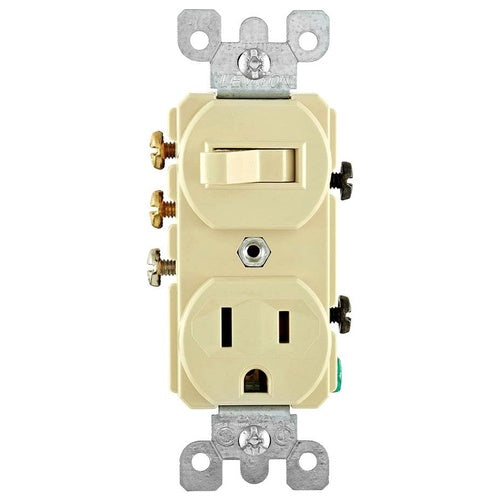

Leviton 5245-I Cmb-3Way Ac Switch & Receptacle5-15R

Overview

Leviton 5245-I Cmb-3Way Ac Switch & Receptacle5-15R

Product Specifications

• UPC: 07847722980
• Color: Ivory
• Application: Commercial
• Approval: UL 20, CSA C22.2, NOM 057
• Additional Information: Applicable Standard ANSI; Actuator Material Thermoplastic; Strap Material Steel; Power Rating 1/2 HP at 120 V; Temperature Rating -40 to 65 Deg C
• Catalog Number: 5245-I
• Model: 5245
• Type: Duplex
• Switch Type: 120/277 VAC 15 Ampere 3-Way Toggle
• Receptacle Type: NEMA 5-15R 125 VAC 15 Ampere with Grounding Straight Blade
• Wiring: Side
• Wall Plate Included: No
• Material: Thermoplastic
• Catalog Description: LEVITON 5245 15 AMP, 120 VOLT, DUPLEX STYLE 3-WAY AC COMBINATION SWITCH/ RECEPTACLE, COMMERCIAL GRADE, GROUNDING, IVORY
• Category: Combination Devices
• Full Technical Description: Duplex Type; Thermoplastic Material; Ivory Color; UL 20, CSA C22.2, NOM 057 Approval; Commercial Application; 120/277 VAC 15 Ampere 3-Way Toggle Switch Type; Side Wiring; No Wall Plate Included; NEMA 5-15R 125 VAC 15 Ampere With Grounding Straight Blade Receptacle Type; Applicable Standard ANSI; Actuator Material Thermoplastic; Strap Material Steel; Power Rating 1/2 HP at 120 V; Temperature Rating -40 to 65 Deg C; 5245 Model
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Combination Switch/Receptacle
• Unspsc: 39122231
• UPC 12 Digit: 078477229804
• SKU Name: lev 5245i
