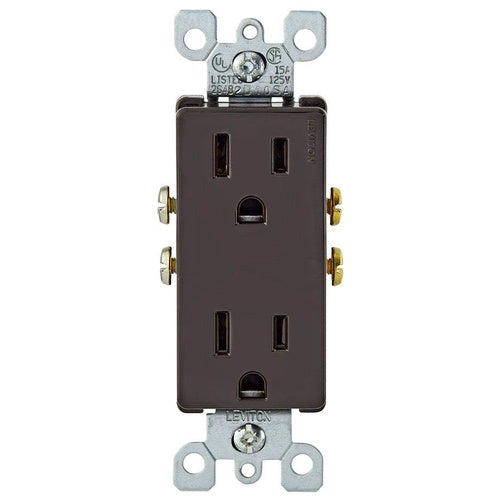

Leviton 5325 Brown Duplex Receptacle-Nema5-15R

Overview

Leviton 5325 Brown Duplex Receptacle-Nema5-15R

Product Specifications

• UPC: 07847723310
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Thermoplastic
• Color: Brown
• Wiring: Push-In, Side
• Grade: Residential
• Approval: UL, CSA
• Additional Information: Material Steel (Strap); Temperature Rating -40 to 60 Deg C
• Catalog Number: 5325
• Brand Name: Decora[R]
• Model: Series 5325
• Type: Decorator Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Catalog Description: 15 AMP, 125 VOLT, DECORA DUPLEX RECEPTACLE, RESIDENTIAL GRADE, GROUNDING, MAHOGANY
• Category: Receptacles & Surge Protectors
• Full Technical Description: Decorator Duplex Type; Thermoplastic Material; Brown Color; 5-15R Configuration; 3 Wire(S); Residential Grade; UL, CSA Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant; Push-in, Side Wiring; Decora [R] Brand; Material Steel (Strap); Temperature Rating -40 to 60 Deg C; SERIES 5325 Model
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477233108
• SKU Name: lev 5325

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
