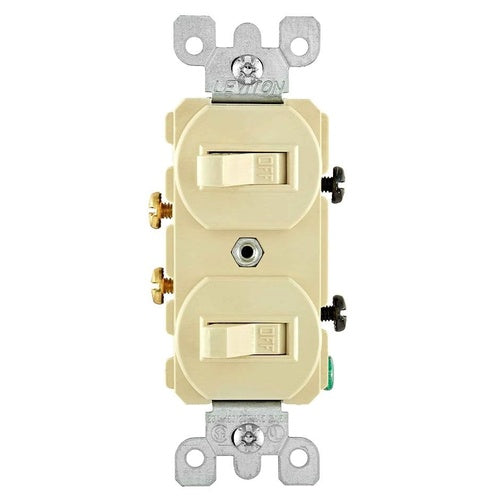

Leviton 5334-I Comb Sp20A 2Sw5-15R

Overview

Leviton 5334-I Comb Sp20A 2Sw5-15R

Product Specifications

• UPC: 07847723340
• Color: Ivory
• Application: Commercial
• Approval: UL 20, CSA C22.2, NOM 057
• Additional Information: Applicable Standard ANSI; Actuator Material Thermoplastic; Strap Material Steel; Power Rating 1 HP at 120 V; Temperature Rating -40 to 65 Deg C
• Catalog Number: 5334-I
• Model: 5334
• Type: Duplex
• Switch 1 Type: 120/277 VAC 20 Ampere 1-Pole with Non-Grounding Toggle
• Switch 2 Type: 120/277 VAC 20 Ampere 1-Pole with Non-Grounding Toggle
• Wiring: Side
• Wall Plate Included: No
• Material: Thermoplastic
• Catalog Description: 20 AMP, 120/277 VOLT, DUPLEX STYLE SINGLE-POLE / SINGLE-POLE AC COMBINATION SWITCH, COMMERCIAL GRADE, IVORY
• Category: Combination Devices
• Full Technical Description: Duplex Type; Thermoplastic Material; Ivory Color; UL 20, CSA C22.2, NOM 057 Approval; Commercial Application; Side Wiring; No Wall Plate Included; 120/277 VAC 20 Ampere 1-Pole With Non-Grounding Toggle Switch 1 Type; 120/277 VAC 20 Ampere 1-Pole With Non-Grounding Toggle Switch 2 Type; Applicable Standard ANSI; Actuator Material Thermoplastic; Strap Material Steel; Power Rating 1 HP at 120 V; Temperature Rating -40 to 65 Deg C; 5334 Model
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Combination Switch/Switch
• Unspsc: 39122231
• UPC 12 Digit: 078477233405
• SKU Name: lev 5334i

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
