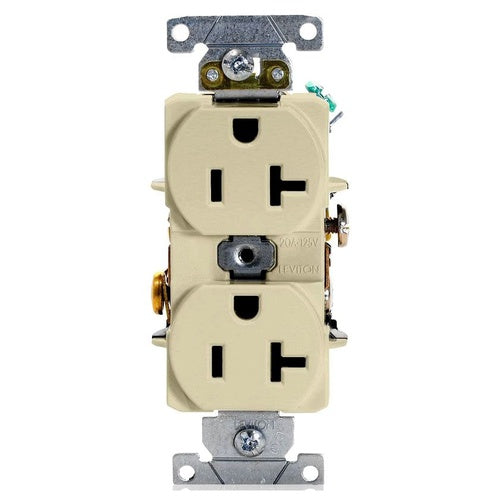

Leviton 5352-I Ivory Duplex Receptacle-Nema5-20R

Overview

Leviton 5352-I Ivory Duplex Receptacle-Nema5-20R

Product Specifications

• UPC: 07847781961
• Material: Thermoplastic Nylon (Body/Face)
• Color: Ivory
• Wiring: Back, Side
• Grade: Heavy Duty, Industrial, Specification
• Approval: UL, CSA C22.2
• Additional Information: APPLICABLE STANDARD ANSI, NEMA WD 1, NEMA WD 6; OPERATING TEMPERATURE -40 TO 60 DEG C
• Catalog Number: 5352-I
• Type: Duplex
• Configuration: 5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Self-Grounding
• Catalog Description: 20-AMP, 125 VOLT, INDUSTRIAL HEAVY DUTY GRADE, DUPLEX RECEPTACLE, STRAIGHT BLADE, SELF GROUNDING, IVORY
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Thermoplastic Nylon (Body/Face) Material; Ivory Color; 5-20R Configuration; 3 Wire(S); Heavy Duty, Industrial, Specification Grade; UL, CSA C22.2 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Self-Grounding; 2 Pole(S); Back, Side Wiring; Applicable Standard ANSI, NEMA Wd 1, NEMA Wd 6; Operating Temperature -40 to 60 Deg C
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477819616
• SKU Name: lev 5352i

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
