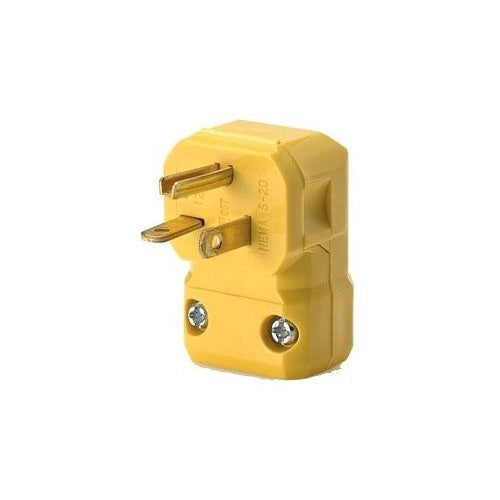

Leviton 5356-VA 2P3W 20A 125V Plug

Overview

Leviton 5356-VA 2P3W 20A 125V Plug

Product Specifications

• UPC: 07847705509
• Number Of Wires: 3
• Ground Type: GROUNDING
• Cord Size: 0.245 TO 0.7 INCH
• Material: NYLON
• Color: YELLOW
• Grade: INDUSTRIAL
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: OPERATING TEMPERATURE -40 TO 60 DEG C; APPLICABLE STANDARD ANSI, NEMA WD 6; BACK COVER MATERIAL THERMOPLASTIC; BLADE/CONTACT MATERIAL SOLID BRASS; TERMINAL SCREW MATERIAL BRASS; ASSEMBLY SCREW MATERIAL ZINC PLATED STEEL
• Catalog Number: 5356-VA
• Brand Name: Python[R]
• Type: ANGLED, POLARIZED
• Constructional Feature: IMPACT RESISTANT
• Configuration: 5-20P
• Voltage Rating: 125 V
• Current Rating: 20 AMPERE
• Number Of Poles: 2
• Catalog Description: 20 AMP, 125 VOLT, INDUSTRIAL GRADE, PLUG, STRAIGHT BLADE, GROUNDING, PYTHON ANGLE, YELLOW
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Angled Type; Super Tough Nylon (Body), Thermoplastic (Back Cover) Material; Yellow Color; 5-20P Configuration; 3 Wire(S); Industrial Grade; UL 498, CSA C22.2, NOM 057 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); 0.245 to 0.7 Inch Cord Size; Blade/Contact Material Solid Brass; Assembly Screw Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C; Flammable Rating UL 94V-2; Applicable Standard ANSI C-73, NEMA Wd-6, ISO 9001
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 078477055090
• SKU Name: lev 5356va

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
