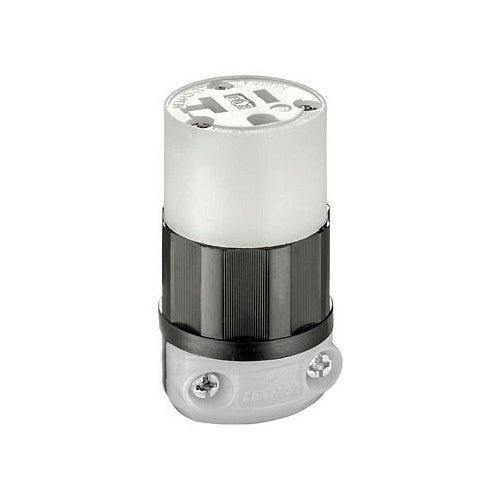

Leviton 5369-C Black Connector-N5-20R

Overview

Leviton 5369-C Black Connector-N5-20R

Product Specifications

• UPC: 07847779594
• Number Of Wires: 3
• Ground Type: Grounding
• Color: Black, White
• Cord Size: 0.245 to 0.7 Inch
• Material: Impact Modified Nylon
• Grade: Industrial
• Approval: UL 498, CSA C22.2, NOM 057, ANSI C-73, NEMA WD-6, Fed Spec WC596, ISO 9001
• Additional Information: Wire Size 18 to 10 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact); Flammability Rating UL 94/HB; Temperature Rating -40 to 60 Deg C; Applicable Standard NEMA WD-6, ANSI C-73
• Catalog Number: 5369-C
• Brand Name: black & white[R]
• Type: Polarized
• Constructional Feature: Impact Resistant, Chemical Resistant, Corrosion Resistant
• Configuration: 5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: 20 AMP, 125 VOLT, CONNECTOR, INDUSTRIAL GRADE, STRAIGHT BLADE, GROUNDING, BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Impact Modified Nylon Material; Black, White Color; 5-20R Configuration; 3 Wire(S); Industrial Grade; UL 498, CSA C22.2, NOM 057, ANSI C-73, NEMA Wd-6, Fed Spec WC596, ISO 9001 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant, Chemical Resistant, Corrosion Resistant; 0.245 to 0.7 Inch Cord Size; Wire Size 18 to 10 AWG; Material Thermoplastic (Back Cover), Solid Brass (Blade/Contact); Flammability Rating UL 94/Hb; Temperature Rating -40 to 60 Deg C; Applicable Standard NEMA Wd-6, ANSI C-73
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Straight Blade Connector
• Unspsc: 39121402
• UPC 12 Digit: 078477795941
• SKU Name: lev 5369c
