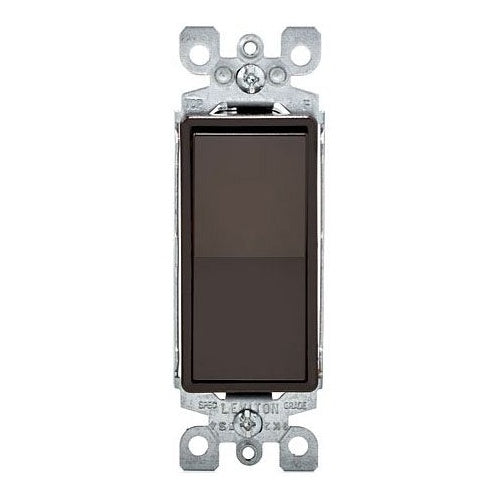

Leviton 5603-2 3-Way Brown 15A Switch

Overview

Leviton 5603-2 3-Way Brown 15A Switch

Product Specifications

• UPC: 07847751720
• Wall Plate Included: No
• Material: Thermoplastic (Body/Actuator), Steel (Strap)
• Color: Brown
• Size: 1.4 Inch Width x 4.2 Inch Height
• Application: Residential
• Approval: UL, CSA
• Additional Information: Power Rating 1/2 HP at 120 Volt, 2 HP at 240/277 Volt; Includes Ground Screw; Applicable Standard ISO 9001
• Catalog Number: 5603-2
• Brand Name: Decora[R]
• Model: 5603
• Type: Standard Rocker, Grounding
• Voltage Rating: 120/277 Volt AC
• Current Rating: 15 Amp
• Operation Type: 3-Way
• Wiring: Quickwire Push-In, Side
• Catalog Description: 15 AMP, 120/277 VOLT, DECORA ROCKER 3-WAY AC QUIET SWITCH, RESIDENTIAL GRADE, GROUNDING, BROWN
• Category: General Purpose Switches
• Full Technical Description: Standard Rocker, Grounding Type; Thermoplastic (Body/Actuator), Steel (Strap) Material; 1.4 Inch Width X 4.2 Inch Height Size; Brown Color; 3-Way Operation Type; UL, CSA Approval; Residential Application; 120/277 Volt AC Voltage Rating; 15 Amp Current Rating; Quickwire Push-in, Side Wiring; No Wall Plate Included; Decora [R] Brand; Power Rating 1/2 HP at 120 Volt, 2 HP at 240/277 Volt; Includes Ground Screw; Applicable Standard ISO 9001; 5603 Model
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Decorator AC Switch
• Unspsc: 39122226
• UPC 12 Digit: 078477517208
• SKU Name: lev 56032

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
