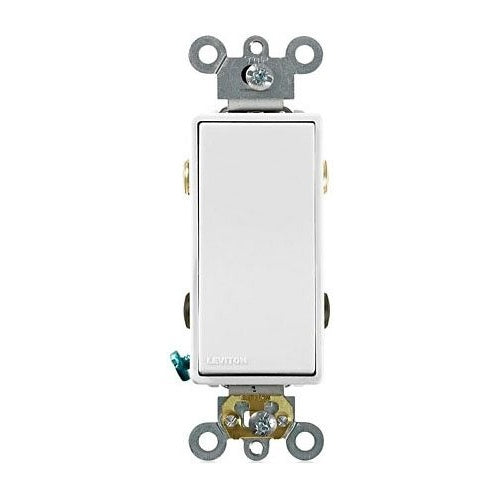

Leviton 5624-2W 4 Way White 20A Switch

Overview

Leviton 5624-2W 4 Way White 20A Switch

Product Specifications

• UPC: 07847751938
• Wall Plate Included: No
• Material: Impact Resistant Thermoplastic
• Color: White
• Size: 1.3 Inch W x 1.6 Inch D x 4.06 Inch H
• Application: Commercial, Specification Grade
• Approval: UL 20, CSA C22.2, NOM 057
• Additional Information: Power Rating 1 HP at 120 V, 2 HP at 240 V; Strap Material Steel; Actuator Material Thermoplastic; Wire Size 14 to 10 AWG (Back), 14 to 12 AWG (Side); Operating Temperature Rating -40 to 65 Deg C
• Catalog Number: 5624-2W
• Brand Name: Decora Plus[TM]
• Model: Series 5624
• Type: Standard Rocker
• Voltage Rating: 120/277 VAC
• Current Rating: 20 Ampere
• Operation Type: 4-Way
• Wiring: Side, Back
• Catalog Description: 20-AMP 120/277-VOLT DECORA PLUS ROCKER 4-WAY AC QUIET SWITCH, WHITE
• Category: General Purpose Switches
• Full Technical Description: Standard Rocker Type; Impact Resistant Thermoplastic Material; 1.3 Inch W X 1.6 Inch D X 4.06 Inch H Size; White Color; 4-Way Operation Type; UL 20, CSA C22.2, NOM 057 Approval; Commercial, Specification Grade Application; 120/277 VAC Voltage Rating; 20 Ampere Current Rating; Side, Back Wiring; No Wall Plate Included; Decora Plus Brand; Power Rating 1 HP at 120 V, 2 HP at 240 V; Strap Material Steel; Actuator Material Thermoplastic; Wire Size 14 to 10 AWG (Back), 14 to 12 AWG (Side); Operating Temperature Rating -40 to 65 Deg C; SERIES 5624 Model
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Decorator AC Switch
• Unspsc: 39122226
• UPC 12 Digit: 078477519387
• SKU Name: lev 56242w
