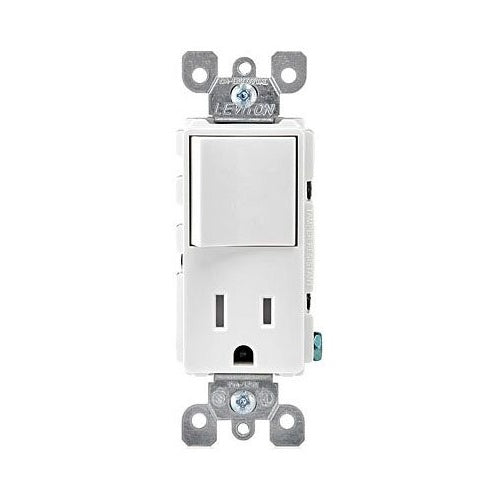

Leviton 5625-W White Combo Single Pole Switch & Receptacle

Overview

Leviton 5625-W White Combo Single Pole Switch & Receptacle

Product Specifications

• UPC: 07847751548
• Material: Thermoplastic
• Color: White
• Application: Residential, Commercial
• Approval: UL, CSA
• Additional Information: Actuator Material Thermoplastic; Strap Material Steel; Power Rating 1/2 HP at 120 V, 2 HP at 240 V
• Catalog Number: 5625-W
• Brand Name: Decora[R]
• Model: 5625
• Type: Decorator
• Switch Type: 120 V 15 Ampere 1-Pole
• Receptacle Type: NEMA 5-15R 125 V 15 Ampere with Grounding Straight Blade
• Wiring: Side
• Wall Plate Included: No
• Catalog Description: 15 AMP, 120 VOLT, DECORA BRAND STYLE SINGLE-POLE, AC COMBINATION SWITCH, COMMERCIAL GRADE, GROUNDING, WHITE
• Category: Combination Devices
• Full Technical Description: Decorator Type; Thermoplastic Material; White Color; UL, CSA Approval; Residential, Commercial Application; 120 V 15 Ampere 1-Pole Switch Type; Side Wiring; No Wall Plate Included; NEMA 5-15R 125 V 15 Ampere With Grounding Straight Blade Receptacle Type; DECORA[R] Brand; Actuator Material Thermoplastic; Strap Material Steel; Power Rating 1/2 HP at 120 V, 2 HP at 240 V; 5625 Model
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Combination Switch/Receptacle
• Unspsc: 39122231
• UPC 12 Digit: 078477515488
• SKU Name: lev 5625w

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
