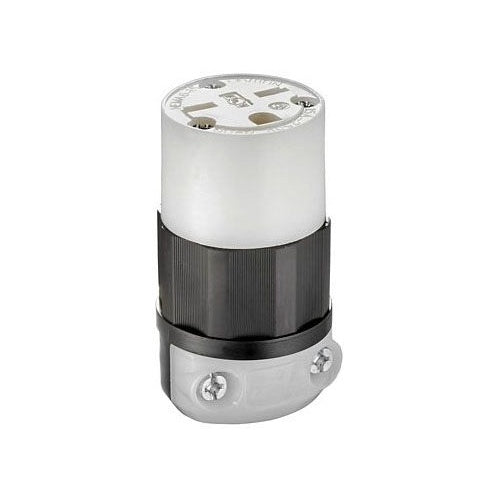

Leviton 5669-C Black Connector-N6-15R

Overview

Leviton 5669-C Black Connector-N6-15R

Product Specifications

• UPC: 07847779562
• Number Of Wires: 3
• Ground Type: Grounding
• Color: Black/White
• Cord Size: 0.245 to 0.7 Inch
• Material: Impact Modified Nylon (Body), Thermoplastic (Back Cover)
• Grade: Industrial
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: APPLICABLE STANDARD NEMA WD-6, ANSI C-73; BLADE/CONTACT MATERIAL SOLID BRASS; BACK COVER MATERIAL THERMOPLASTIC; OPERATING TEMPERATURE -40 TO 60 DEG C
• Catalog Number: 5669-C
• Brand Name: Dustguard[R], python[R]
• Type: Polarized, Straight
• Constructional Feature: Impact/Chemical/Corrosion/Water Resistant
• Configuration: 6-15R
• Voltage Rating: 250 Volt
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: 15 AMP, 250 VOLT, CONNECTOR, STRAIGHT BLADE, GROUNDING, INDUSTRIAL GRADE, BLACK-WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized, Straight Type; Impact Modified Nylon (Body), Thermoplastic (Back Cover) Material; Black/White Color; 6-15R Configuration; 3 Wire(S); Industrial Grade; UL 498, CSA C22.2, NOM 057 Approval; 250 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact/Chemical/Corrosion/Water Resistant; 0.245 to 0.7 Inch Cord Size; DUSTGUARD[R], PYTHON[R] Brand; Applicable Standard NEMA Wd-6, ANSI C-73; Blade/Contact Material Solid Brass; Back Cover Material Thermoplastic; Operating Temperature -40 to 60 Deg C
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Straight Blade Connector
• Unspsc: 39121402
• UPC 12 Digit: 078477795620
• SKU Name: lev 5669c
