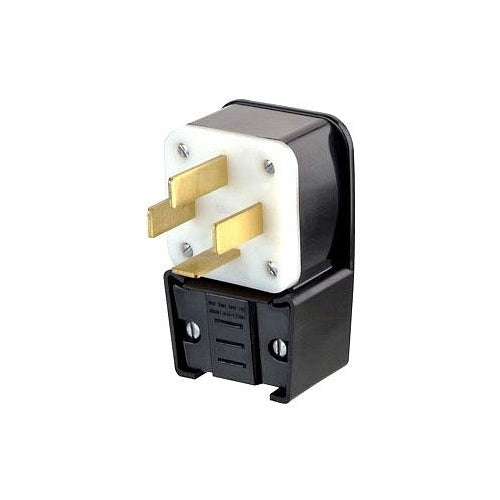

Leviton 8362-P Angle Plug 18-60R

Overview

Leviton 8362-P Angle Plug 18-60R

Product Specifications

• UPC: 07847781009
• Material: Super Tough Nylon (Body), Solid Brass (Blade/Contact)
• Color: Black
• Cord Size: 0.625 to 1.375 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: Assembly Screw Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C
• Catalog Number: 8362-P
• Type: Angled
• Configuration: 18-60P
• Voltage Rating: 120/208 V Star 3-Phase
• Current Rating: 60 Ampere
• Number Of Poles: 4
• Number Of Wires: 4
• Ground Type: Non-Grounding
• Catalog Description: 60 AMP, 277 VOLT, STRAIGHT BLADE, PLUG, INDUSTRIAL GRADE, ANGLE, NON-GROUNDING, BLACK
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Angled Type; Super Tough Nylon (Body), Solid Brass (Blade/Contact) Material; Black Color; 18-60P Configuration; 4 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 120/208 V Star 3-Phase Voltage Rating; 60 Ampere Current Rating; Non-Grounding; 4 Pole(S); 0.625 to 1.375 Inch Cord Size; Assembly Screw Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Straight Blade Power Plug
• Unspsc: 39121402
• UPC 12 Digit: 078477810095
• SKU Name: lev 8362p

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
