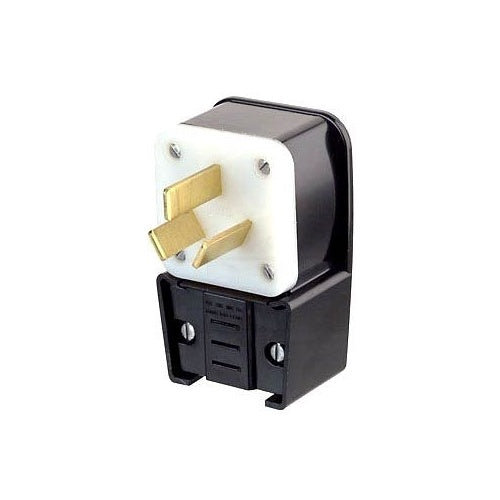

Leviton 9450-P Angle Plug 10-50P

Overview

Leviton 9450-P Angle Plug 10-50P

Product Specifications

• UPC: 07847780994
• Material: Nylon
• Color: Black
• Cord Size: 0.625 to 1.375 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Additional Information: APPLICABLE STANDARD NEMA WD-6, ANSI C-73; OPERATING TEMPERATURE -40 TO 60 DEG C; BLADE/CONTACT MATERIAL SOLID BRASS
• Catalog Number: 9450-P
• Type: Angled
• Configuration: 10-50P
• Voltage Rating: 125/250 Volt
• Current Rating: 50 Amp
• Number Of Poles: 3
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Catalog Description: 50 AMP, 125/250 VOLT, STRAIGHT BLADE, PLUG, INDUSTRIAL GRADE, NON-GROUNDING, ANGLE, BLACK
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Angled Type; Nylon Material; Black Color; 10-50P Configuration; 3 Wire(S); UL 498, CSA C22.2, NOM 057 Approval; 125/250 Volt Voltage Rating; 50 Amp Current Rating; Non-Grounding; 3 Pole(S); 0.625 to 1.375 Inch Cord Size; Applicable Standard NEMA Wd-6, ANSI C-73; Operating Temperature -40 to 60 Deg C; Blade/Contact Material Solid Brass
• Manufacturer: Leviton Mfg. Co., Inc.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Straight Blade Power Plug
• Unspsc: 39121402
• UPC 12 Digit: 078477809945
• SKU Name: lev 9450p
