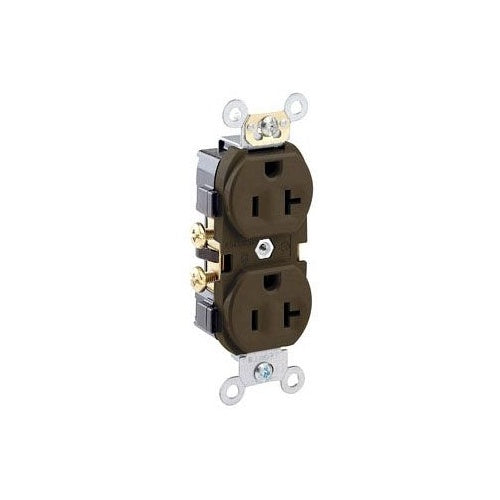

Leviton CR20 Brown Duplex Receptacle Nema5-20R

Overview

Leviton CR20 Brown Duplex Receptacle Nema5-20R

Product Specifications

• UPC: 07847781542
• Number Of Wires: 3
• Ground Type: Self-Grounding
• Material: Thermoplastic (Body/Face)
• Color: Brown
• Wiring: Side
• Grade: Heavy Duty Commercial Specification
• Approval: UL 498, CSA C22.2
• Additional Information: Power Rating 1 HP; Wire Size 14 to 10 AWG; Strap Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C; Applicable Standard UL 94 V-2, ANSI C-73, NOM 057, NEMA WD-2 and WD-6, ISO 9001
• Catalog Number: CR20
• Model: CR20
• Type: Duplex, Indented Face
• Constructional Feature: Tamper Resistant
• Configuration: NEMA 5-20R
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: 20 AMP, 125 VOLT, NEMA 5-20R, 2P, 3W, NARROW BODY DUPLEX RECEPTACLE, STRAIGHT BLADE, COMMERCIAL GRADE, SELF GROUNDING, SIDE WIRED, STEEL STRAP - BROWN
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex, Indented Face Type; Thermoplastic (Body/Face) Material; Brown Color; NEMA 5-20R Configuration; 3 Wire(S); Heavy Duty Commercial Specification Grade; UL 498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 20 Amp Current Rating; Self-Grounding; 2 Pole(S); Tamper Resistant; Side Wiring; Power Rating 1 HP; Wire Size 14 to 10 AWG; Strap Material Zinc Plated Steel; Temperature Rating -40 to 60 Deg C; Applicable Standard UL 94 V-2, ANSI C-73, NOM 057, NEMA Wd-2 and Wd-6, ISO 9001; CR20 Model
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 078477815427
• SKU Name: lev cr20
