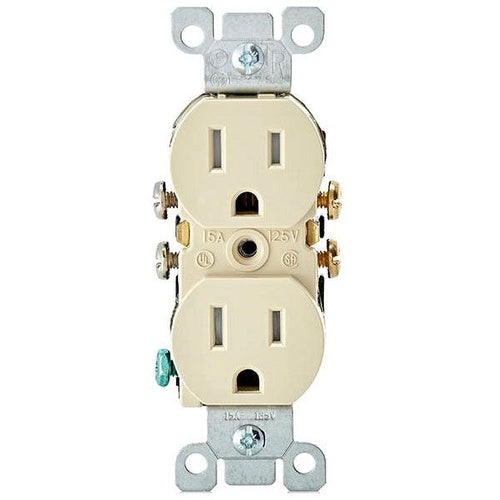

Leviton T5320-I Ivory Nema5-15R Duplex Receptacle

Overview

Leviton T5320-I Ivory Nema5-15R Duplex Receptacle

Product Specifications

• UPC: 07847738191
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Thermoplastic
• Color: Ivory
• Wiring: Side, Quickwire Push-In
• Grade: Residential
• Approval: UL 498, CSA C22.2, NOM, NEC
• Catalog Number: T5320-I
• Model: T5320
• Type: Duplex, Traditional
• Constructional Feature: Tamper/Impact Resistant
• Configuration: NEMA 5-15R
• Voltage Rating: 125 Volt
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: 15 AMP, 125 VOLT, NEMA 5-15R, 2P, 3W, DUPLEX RECEPTACLE, TAMPER RESISTANT, STRAIGHT BLADE, RESIDENTIAL GRADE, GROUNDING, ALL SCREWS BACKED OUT, WITH EARS, QUICKWIRE PUSH-IN & SIDE WIRED, STEEL STRAP - IVORY, 2008 NEC COMPLIANT
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex, Traditional Type; Thermoplastic Material; Ivory Color; NEMA 5-15R Configuration; 3 Wire(S); Residential Grade; UL 498, CSA C22.2, NOM, NEC Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Tamper/Impact Resistant; Side, Quickwire Push-in Wiring; T5320 Model
• Made In Usa: Yes
• Manufacturer: LEVITON MFG CO.
• Manufacturer Brand: Leviton Mfg. Co., Inc.
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39111503
• UPC 12 Digit: 078477381915
• SKU Name: lev t5320i

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
