ILSCO M-165 100A250V Spring Fuse Clip

Overview

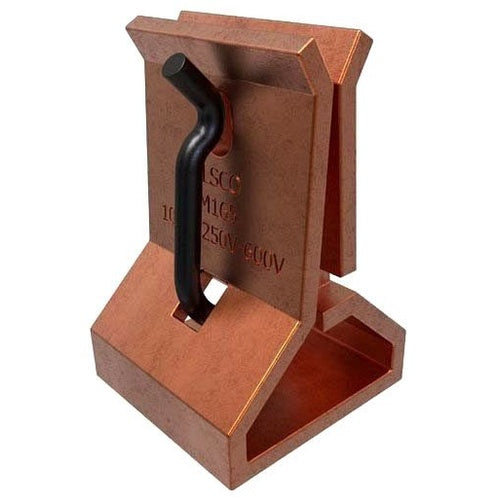

Ilsco M-165 100A250V Spring Fuse Clip

Product Specifications

• UPC: 78366960827
• Depth: 1-23/64 Inch
• Material: Copper Alloy
• Mounting: 1/4 Inch Bolt
• Approval: UL
• Additional Information: ROHS Compliant; Includes Permanently Installed Steel Spring, Heat Treated Spring
• Catalog Number: M-165
• Model: M
• Item: Fuse Clip
• Fuse Type: Class M
• Voltage Rating: 250/600 V
• Amperage: 100 Ampere
• Length: 29/32 Inch
• Width: 7/8 Inch
• Catalog Description: COPPER FUSE CLIP, WIRE REINFORCED, 250 TO 600 VOLTS, 100 AMPS
• Category: Clips,Reducers,Rejectors,Etc.
• Full Technical Description: Copper Alloy Material; 29/32 Inch; 7/8 Inch; 1-23/64 Inch; UL Approval; 250/600 V Voltage Rating; 1/4 Inch Bolt Mounting; Fuse Clip; Class M Fuse Type; 100 Ampere; RoHS Compliant; Includes Permanently Installed Steel Spring, Heat Treated Spring; M Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Fuse Accessories
• Unspsc: 39121630
• UPC 12 Digit: 783669608274
• SKU Name: m165 ilsco
