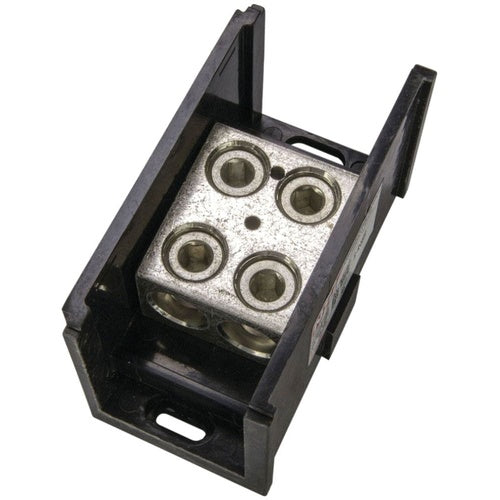

NSI AL-R2-R2 (2) 500 MCM -6 Awg Primary (2) 500-6 Secondary, Power Distribution Block

Overview

NSI AL-R2-R2 (2) 500 MCM -6 Awg Primary (2) 500-6 Secondary, Power Distribution Block

Product Specifications

• UPC: 66238116622
• Number Of Secondary Openings Per Pole: 2
• Secondary Opening Wire Size: 4 AWG to 500 KCMIL
• Conductor Material: Copper/Aluminum
• Cover Type: Clear Acrylic, CL
• Size: 5.5 Inch Length x 2.9 Inch Width x 3.25 Inch Height
• Temperature Rating: 90 Deg C
• Connector Material: Aluminum Alloy
• Housing Material: Glass Filled Polyester
• Color: Black
• Approval: UL 1059, CSA
• Catalog Number: AL-R2-R2
• Additional Information: Short Circuit Current Rating 10000 Amp; Number of Terminals 4; Mounting Type 2-Hole; Application Terminate, Splice, Tap Power Connector
• Brand Name: NSi
• Model: AL
• Type: Splicer/Reducer
• Voltage Rating: 600 Volt
• Current Rating: 760 Amp per Pole
• Number Of Primary Openings Per Pole: 2
• Primary Opening Wire Size: 4 AWG to 500 KCMIL
• Catalog Description: POWER DISTRIBUTION BLOCK (2) 500 MCM-4 AWG PRIMARY (2) 500 MCM-4 AWG SECONDARY POWER DISTRIBUTION BLOCKS ARE MADE OF HIGH STRENGTH, HIGH-CONDUCTIVITY ALUMINUM ALLOY AND ARE MOUNTED IN A HIGH-STRENGTH GLASS-FILLED POLYESTER BASE. EACH BLOCK CAN STAND ALONE OR COMBINE WITH OTHER BLOCKS TO FORM A MULTI-BLOCK SET.
• Category: Terminal Blocks & Accessories
• Full Technical Description: Splicer/Reducer Type; 5.5 Inch Length X 2.9 Inch Width X 3.25 Inch Height Size; Black Color; Copper/Aluminum Conductor Material; UL 1059, CSA Approval; 600 Volt Voltage Rating; 760 Amp Per Pole Current Rating; Clear Acrylic, CL Cover Type; 90 Deg C Temperature Rating; Glass Filled Polyester Housing Material; Aluminum Alloy Connector Material; 4 AWG to 500 kcmil Secondary Opening Wire Size; 4 AWG to 500 kcmil Primary Opening Wire Size; 2 Secondary Openings Per Pole; 2 Primary Openings Per Pole; Connector BLOKS[TM] Brand; Short Circuit Current Rating 10000 Amp; Number of Terminals 4; Mounting Type 2-Hole; Application Terminate, Splice, Tap Power Connector; AL Model
• Made In Usa: Yes
• Manufacturer: NSi Industries, LLC
• Manufacturer Brand: NSi Industries, Inc.
• Sub Category: Power Distribution Block
• Unspsc: 39121719
• UPC 12 Digit: 662381166227
• SKU Name: nsi alr2r2
