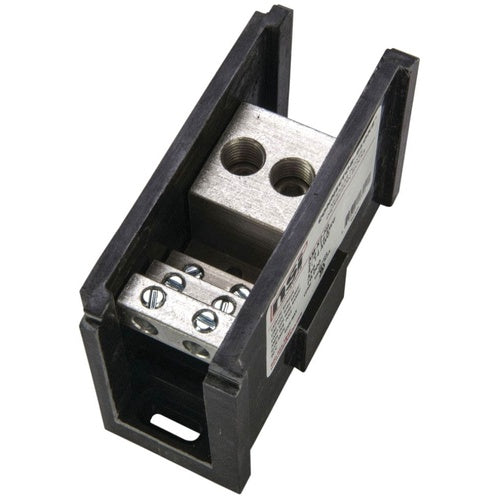

NSI AM-K2-H6 (2) 2/0-14 Primary(6) 4-14 Secondary, Power Distribution Block

Overview

NSI AM-K2-H6 (2) 2/0-14 Primary(6) 4-14 Secondary, Power Distribution Block

Product Specifications

• UPC: 66238116554
• Number Of Secondary Openings Per Pole: 6
• Secondary Opening Wire Size: 14 to 4 AWG
• Conductor Material: Aluminum/Copper
• Cover Type: Clear Acrylic, CM
• Size: 4 Inch L x 1.71 Inch W x 2.62 Inch H
• Temperature Rating: 90 Deg C
• Connector Material: Aluminum Alloy
• Housing Material: Glass Filled Polyester
• Color: Black
• Approval: UL, CSA
• Catalog Number: AM-K2-H6
• Brand Name: CONNECTOR BLOKS[TM]
• Model: AM
• Type: Modular
• Voltage Rating: 600 V
• Current Rating: 350 Ampere
• Number Of Primary Openings Per Pole: 2
• Primary Opening Wire Size: 14 to 2/0 AWG
• Catalog Description: POWER DISTRIBUTION BLOCK-MEDIUM (2) 2/0-14 AWG PRIMARY (6) 4-14 AWG SECONDARY POWER DISTRIBUTION BLOCKS ARE MADE OF HIGH STRENGTH, HIGH-CONDUCTIVITY ALUMINUM ALLOY AND ARE MOUNTED IN A HIGH-STRENGTH GLASS-FILLED POLYESTER BASE. EACH BLOCK CAN STAND ALONE OR COMBINE WITH OTHER BLOCKS TO FORM A MULTI-BLOCK SET.
• Category: Terminal Blocks & Accessories
• Full Technical Description: Modular Type; 4 Inch L X 1.71 Inch W X 2.62 Inch H Size; Black Color; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V Voltage Rating; 350 Ampere Current Rating; Clear Acrylic, cm Cover Type; 90 Deg C Temperature Rating; Glass Filled Polyester Housing Material; Aluminum Alloy Connector Material; 14 to 4 AWG Secondary Opening Wire Size; 14 to 2/0 AWG Primary Opening Wire Size; 6 Secondary Openings Per Pole; 2 Primary Openings Per Pole; Connector BLOKS[TM] Brand; AM Model
• Made In Usa: Yes
• Manufacturer: NSI IND., INC.
• Manufacturer Brand: NSi Industries, Inc.
• Sub Category: Power Distribution Block
• Unspsc: 39121410
• UPC 12 Digit: 662381165541
• SKU Name: nsi amk2h6

Resources

• Manufacturer Spec Sheet
