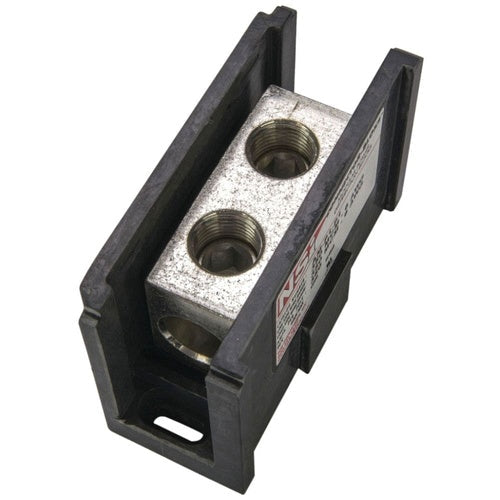

NSI AM-P1-P1 (1) 350 MCM - 6 Awg Primary (1) 350 MCM - 6 Awg Secondary, Power Distribution Block

Overview

NSI AM-P1-P1 (1) 350 MCM - 6 Awg Primary (1) 350 MCM - 6 Awg Secondary, Power Distribution Block

Product Specifications

• UPC: 66238116610
• Number Of Secondary Openings Per Pole: 1
• Secondary Opening Wire Size: 6 AWG to 350 KCMIL
• Conductor Material: Copper/Aluminum
• Cover Type: Clear Acrylic, CM
• Size: 4 Inch Length x 1.71 Inch Width x 2.62 Inch Height
• Temperature Rating: 90 Deg C
• Connector Material: Aluminum Alloy
• Housing Material: Glass Filled Polyester
• Color: Black
• Approval: UL 1059, CSA
• Catalog Number: AM-P1-P1
• Additional Information: Short Circuit Current Rating 10000 Amp; Number of Terminals 2; Mounting Type 2-Hole; Application Terminate, Splice, Tap Power Connector
• Brand Name: NSi
• Model: AM
• Type: Splicer/Reducer
• Voltage Rating: 600 Volt
• Current Rating: 350 Amp per Pole
• Number Of Primary Openings Per Pole: 1
• Primary Opening Wire Size: 6 AWG to 350 KCMIL
• Catalog Description: POWER DISTRIBUTION BLOCK (1) 350 MCM-6 AWG PRIMARY (1) 350 MCM-6 AWG SECONDARY POWER DISTRIBUTION BLOCKS ARE MADE OF HIGH STRENGTH, HIGH-CONDUCTIVITY ALUMINUM ALLOY AND ARE MOUNTED IN A HIGH-STRENGTH GLASS-FILLED POLYESTER BASE. EACH BLOCK CAN STAND ALONE OR COMBINE WITH OTHER BLOCKS TO FORM A MULTI-BLOCK SET.
• Category: Terminal Blocks & Accessories
• Full Technical Description: Splicer/Reducer Type; 4 Inch Length X 1.71 Inch Width X 2.62 Inch Height Size; Black Color; Copper/Aluminum Conductor Material; UL 1059, CSA Approval; 600 Volt Voltage Rating; 350 Amp Per Pole Current Rating; Clear Acrylic, cm Cover Type; 90 Deg C Temperature Rating; Glass Filled Polyester Housing Material; Aluminum Alloy Connector Material; 6 AWG to 350 kcmil Secondary Opening Wire Size; 6 AWG to 350 kcmil Primary Opening Wire Size; 1 Secondary Openings Per Pole; 1 Primary Openings Per Pole; Connector BLOKS[TM] Brand; Short Circuit Current Rating 10000 Amp; Number of Terminals 2; Mounting Type 2-Hole; Application Terminate, Splice, Tap Power Connector; AM Model
• Made In Usa: Yes
• Manufacturer: NSi Industries, LLC
• Manufacturer Brand: NSi Industries, Inc.
• Sub Category: Power Distribution Block
• Unspsc: 39121410
• UPC 12 Digit: 662381166104
• SKU Name: nsi amp1p1
