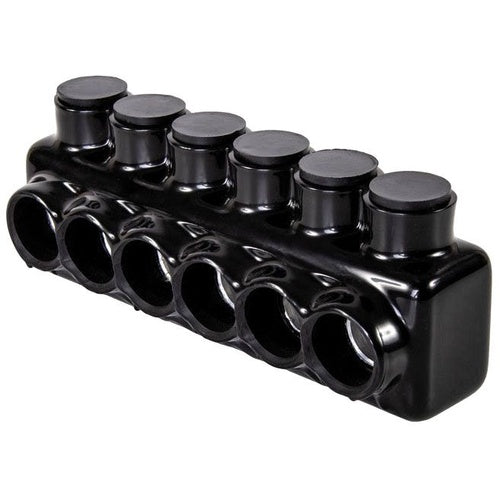

NSI IPL3/0-6 3/0-6 Awg Polaris Insulated Multi-Tap Connector 6 Port (Single Sided Entry)

Overview

NSI IPL3/0-6 3/0-6 Awg Polaris Insulated Multi-Tap Connector 6 Port (Single Sided Entry)

Product Specifications

• UPC: 66238191204
• Maximum Conductor Size: 3/0 AWG Stranded
• Body Material: Plastisol
• Approval: UL (Canada and US)
• Additional Information: Type Insulated; Overall Dimension 4.97 Inch L x 1.6 Inch W x 1.8 Inch H; Constructional Feature Abrasion Resistant, Chemical Resistant; Color Black; Temperature Rating 90 Deg C
• Catalog Number: IPL3/0-6
• Brand Name: POLARIS[TM]
• Model: IPL
• Voltage Rating: 600 V
• Number Of Ports: 6
• Cable Entry: 1 Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 6 AWG Stranded
• Catalog Description: THE POLARIS IPL3/0-6 MULTI-TAP SINGLE SIDE ENTRY CONNECTOR FEATURES 6 PORTS SIZED FOR 3/0-6 AWG WIRES. THE BODY IS MADE FROM ALUMINUM ALLOY WRAPPED IN A LAYER OF PLASTISOL INSULATION. EACH PORT IS PRE-LOADED WITH AN OXIDE INHIBITOR, WITH REMOVABLE ACCESS PLUGS OVER THE HEX SCREWS USED TO TIGHTEN THE CONNECTIONS. INSTALLS WITH A HEX KEY AND TORQUE WRENCH, WITHOUT ANY TAPE OR ADDITIONAL SUPPLIES. DESIGNED FOR USE IN A WIDE RANGE OF SPLICING APPLICATIONS, INCLUDING INSTALLATION IN CABLE TRAYS, PANEL BOARDS, DUCTS, RACEWAYS OR TROUGHS.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG Stranded min. Conductor Size; 3/0 AWG Stranded Max. Conductor Size; Copper/Aluminum Conductor Material; UL (Canada and Us) Approval; 600 V Voltage Rating; Plastisol Body Material; 6 Port(S); 1 Side Entry Cable Entry; POLARIS[TM] Brand; Type Insulated; Overall Dimension 4.97 Inch L X 1.6 Inch W X 1.8 Inch H; Constructional Feature Abrasion Resistant, Chemical Resistant; Color Black; Temperature Rating 90 Deg C; IPL Model
• Made In Usa: Yes
• Manufacturer: NSi Industries, LLC
• Manufacturer Brand: NSi Industries, Inc.
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121409
• UPC 12 Digit: 662381912046
• SKU Name: nsi ipl3/06
