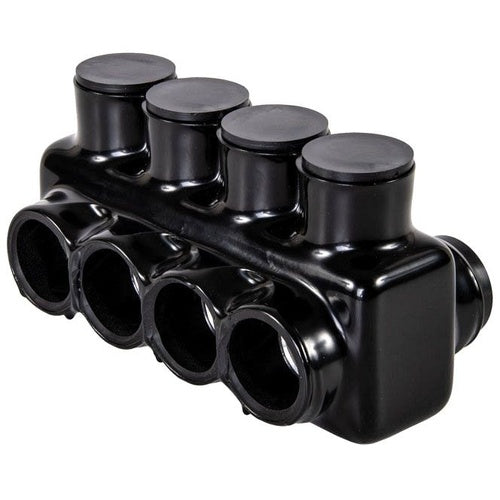

NSI IPLD250-4 250 MCM - 6 Awg Polaris Insulated Multi-Tap Connector 4 Port (Dual Sided Entry)

Overview

NSI IPLD250-4 250 MCM - 6 Awg Polaris Insulated Multi-Tap Connector 4 Port (Dual Sided Entry)

Product Specifications

• UPC: 66238192302
• Body Material: Plastisol
• Approval: UL (Canada and US)
• Additional Information: Type Insulated; Overall Dimension 3.8 Inch Length x 2.28 Inch Width x 2.18 Inch Height; Color Black; Wire Type Class B/C; Hex/Wrench Size 5/16 Inch; Temperature Rating 90 Deg C; Application Wire Termination
• Catalog Number: IPLD250-4
• Model: IPLD
• Voltage Rating: 600 Volt
• Number Of Ports: 4
• Cable Entry: 2-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 250 MCM
• Catalog Description: THE POLARIS IPLD250-4 MULTI-TAP DUAL-SIDED ENTRY BLACK CONNECTOR FEATURES 4 PORTS SIZED FOR 250 MCM - 6 AWG WIRES. THE BODY IS MADE FROM ALUMINUM ALLOY WRAPPED IN A LAYER OF PLASTISOL INSULATION. EACH DUAL-SIDED PORT IS PRE-LOADED WITH AN OXIDE INHIBITOR, WITH REMOVABLE ACCESS PLUGS OVER THE HEX SCREWS USED TO TIGHTEN THE CONNECTIONS. INSTALLS WITH A HEX KEY AND TORQUE WRENCH, WITHOUT ANY TAPE OR ADDITIONAL SUPPLIES. DESIGNED FOR USE IN A WIDE RANGE OF SPLICING APPLICATIONS, INCLUDING INSTALLATION IN CABLE TRAYS, PANEL BOARDS, DUCTS, RACEWAYS OR TROUGHS.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG min. Conductor Size; 250 MCM Max. Conductor Size; Copper/Aluminum Conductor Material; UL (Canada and Us) Approval; 600 Volt Voltage Rating; Plastisol Body Material; 4 Port(S); 2-Side Entry Cable Entry; POLARIS[TM] Brand; Type Insulated; Overall Dimension 3.8 Inch Length X 2.28 Inch Width X 2.18 Inch Height; Color Black; Wire Type Class B/C; Hex/Wrench Size 5/16 Inch; Temperature Rating 90 Deg C; Application Wire Termination; IPLD Model
• Manufacturer: NSi Industries, LLC
• Manufacturer Brand: NSi Industries, Inc.
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121409
• UPC 12 Digit: 662381923028
• SKU Name: nsi ipld2504
