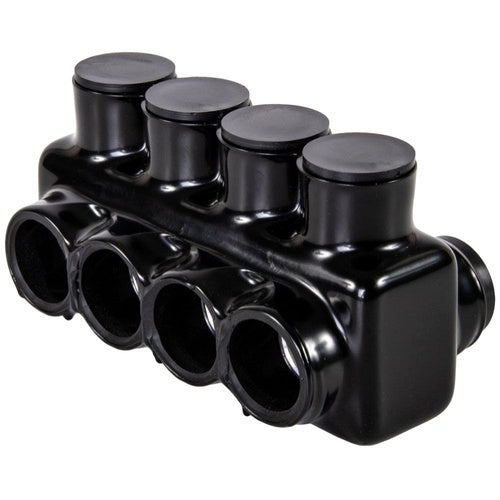

NSI IPLD500-4 500 MCM - 4 Awg Polaris Insulated Multi-Tap Connector 4 Port (Dual Sided Entry)

Overview

NSI IPLD500-4 500 MCM - 4 Awg Polaris Insulated Multi-Tap Connector 4 Port (Dual Sided Entry)

Product Specifications

• UPC: 66238192502
• Approval: UL, UL (Canada and US)
• Additional Information: Wire Type Class B and C; Number of Conductors 4; Size 5.24 Inch L x 2.83 Inch W x 2.91 Inch H; Temperature Rating 90 Deg C; Color Black
• Catalog Number: IPLD500-4
• Voltage Rating: 600 V
• Number Of Ports: 4
• Cable Entry: 2 Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 500 KCMIL
• Maximum Conductor Size: 4 AWG
• Body Material: Plastisol
• Catalog Description: THE POLARIS IPLD500-4 MULTI-TAP DUAL-SIDED ENTRY CONNECTOR FEATURES 4 PORTS SIZED FOR 500 MCM - 4 AWG WIRES. THE BODY IS MADE FROM ALUMINUM ALLOY WRAPPED IN A LAYER OF PLASTISOL INSULATION. EACH DUAL-SIDED PORT IS PRE-LOADED WITH AN OXIDE INHIBITOR, WITH REMOVABLE ACCESS PLUGS OVER THE HEX SCREWS USED TO TIGHTEN THE CONNECTIONS. INSTALLS WITH A HEX KEY AND TORQUE WRENCH, WITHOUT ANY TAPE OR ADDITIONAL SUPPLIES. DESIGNED FOR USE IN A WIDE RANGE OF SPLICING APPLICATIONS, INCLUDING INSTALLATION IN CABLE TRAYS, PANEL BOARDS, DUCTS, RACEWAYS OR TROUGHS.
• Category: Large Terminals & Connectors
• Full Technical Description: 500 kcmil min. Conductor Size; 4 AWG Max. Conductor Size; Copper/Aluminum Conductor Material; UL, UL (Canada and Us) Approval; 600 V Voltage Rating; Plastisol Body Material; 4 Port(S); 2 Side Entry Cable Entry; POLARIS[TM] Brand; Wire Type Class B and C; Number of Conductors 4; Size 5.24 Inch L X 2.83 Inch W X 2.91 Inch H; Temperature Rating 90 Deg C; Color Black
• Made In Usa: Yes
• Manufacturer: NSi Industries, LLC
• Manufacturer Brand: NSi Industries, Inc.
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121409
• UPC 12 Digit: 662381925022
• SKU Name: nsi ipld5004
