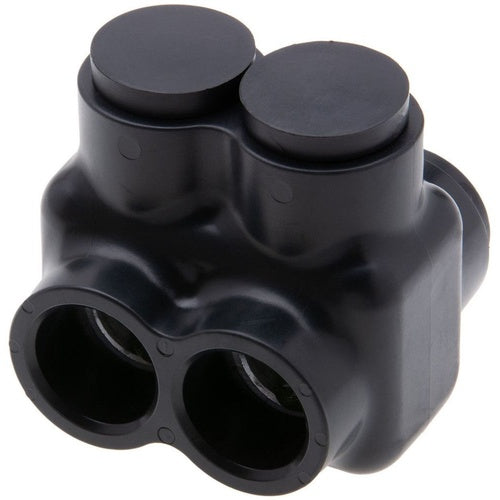

NSI IT-3/0 3/0-6 Awg Polaris Insulated Tap Connector (Single Sided Entry)

Overview

NSI IT-3/0 3/0-6 Awg Polaris Insulated Tap Connector (Single Sided Entry)

Product Specifications

• UPC: 66238195005
• Maximum Conductor Size: 3/0 AWG
• Body Material: High Dielectric Strength Plastisol Insulated
• Approval: UL 486B, UL (Canada and US)
• Additional Information: Constructional Feature Chemical Resistant, Abrasion Resistant; Wire Type Class B and C; Overall Dimension 1.84 Inch Length x 1.75 Inch Width x 1.87 Inch Height; Hex Size 1/4 Inch; Color Black; Torque Rating 250 Inch-Pound; Temperature Rating 90 Deg C, -45
• Catalog Number: IT-3/0
• Brand Name: Polaris[TM]
• Model: IT
• Voltage Rating: 600 Volt
• Number Of Ports: 2
• Cable Entry: 1-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 6 AWG
• Catalog Description: THE POLARIS IT-3/0 MULTI-TAP SINGLE-SIDE ENTRY CONNECTOR FEATURES 2 PORTS SIZED FOR 3/0 AWG TO 6 AWG WIRES. THE BODY IS MADE FROM ALUMINUM ALLOY WRAPPED IN A LAYER OF PLASTISOL INSULATION. EACH PORT IS PRE-LOADED WITH AN OXIDE INHIBITOR, WITH REMOVABLE ACCESS PLUGS OVER THE HEX SCREWS USED TO TIGHTEN THE CONNECTIONS. DUAL RATED FOR USE WITH COPPER OR ALUMINUM CABLES. INSTALLS WITH A HEX KEY AND TORQUE WRENCH, WITHOUT ANY TAPE OR ADDITIONAL SUPPLIES. DESIGNED FOR USE IN A WIDE RANGE OF SPLICING APPLICATIONS, INCLUDING INSTALLATION IN CABLE TRAYS, PANEL BOARDS, DUCTS, RACEWAYS OR TROUGHS.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG min. Conductor Size; 3/0 AWG Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, UL (Canada and Us) Approval; 600 Volt Voltage Rating; High Dielectric Strength Plastisol Insulated Body Material; 2 Port(S); 1-Side Entry Cable Entry; Polaris Brand; Constructional Feature Chemical Resistant, Abrasion Resistant; Wire Type Class B and C; Overall Dimension 1.84 Inch Length X 1.75 Inch Width X 1.87 Inch Height; Hex Size 1/4 Inch; Color Black; Torque Rating 250 Inch-Pound; Temperature Rating 90 Deg C, -45 Deg C (Cold); Application Wire Termination, Dry Location; IT Model
• Manufacturer: NSi Industries, LLC
• Manufacturer Brand: NSi Industries, Inc.
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121409
• UPC 12 Digit: 662381950055
• SKU Name: nsi it3/0

Resources

• Manufacturer Spec Sheet
