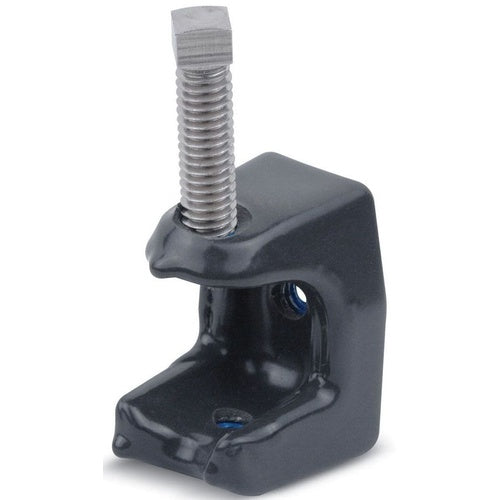

Ocal 502-G Beam ClAMP, Jaw Opening 1" Gray

Overview

Ocal 502-G Beam Clamp, Jaw Opening 1" Gray

Product Specifications

• UPC: 70450843666
• Additional Information: Approval CSA
• Catalog Number: 502-G
• Type: Corrosion Protection
• Maximum Jaw Capacity: 1 Inch
• Supplied With Screw: Yes
• Load Capacity: 1300 Pound
• Material: Malleable Iron
• Finish: Gray PVC Coated
• Application: Hanging Threaded Rod
• Catalog Description: PVC COATED HANGER ROD BEAM CLAMP, JAW OPENING 1 INCH/25.40 MILLIMETERS, LOAD RATING 1,300 POUNDS/589.67 KILOGRAMS, BASE 2 INCH X 2 INCH, MALLEABLE IRON, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Corrosion Protection Type; Malleable Iron Material; Gray PVC Coated Finish; 1 Inch Max. Jaw Capacity; Hanging Threaded Rod Application; 1300 Pound Load Capacity; Yes Supplied With Screw; Approval CSA
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 704508436667
• SKU Name: ocal 502g

Resources

• Manufacturer Spec Sheet
