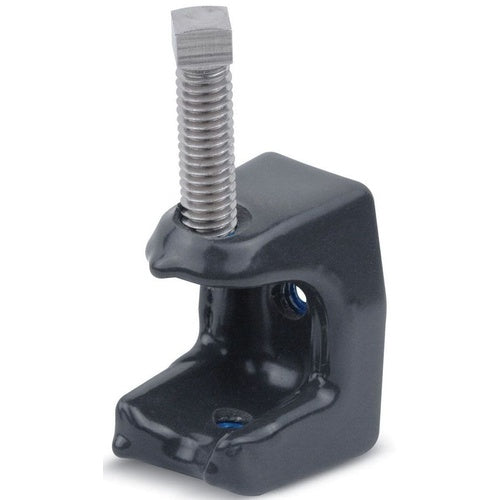

Ocal 503-G Beam ClAMP, Jaw Opening 1" Gray

Overview

Ocal 503-G Beam Clamp, Jaw Opening 1" Gray

Product Specifications

• UPC: 70450843670
• Additional Information: Color Grey
• Catalog Number: 503-G
• Type: I
• Maximum Jaw Capacity: 1 Inch
• Supplied With Screw: Yes
• Screw Type: Square Head
• Material: Malleable Iron
• Process: PVC Coated
• Application: Hanging Threaded Rod
• Catalog Description: PVC COATED HANGER ROD BEAM CLAMP, JAW OPENING 1 INCH/25.40 MILLIMETERS, LOAD RATING 1,300 POUNDS/589.67 KILOGRAMS, BASE 2-5/8 INCH X 2-1/2 INCH, MALLEABLE IRON, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: I Type; Malleable Iron Material; 1 Inch Max. Jaw Capacity; Hanging Threaded Rod Application; PVC Coated Process; Square Head Screw Type; Yes Supplied With Screw; Color Grey
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 704508436704
• SKU Name: ocal 503g

Resources

• Manufacturer Spec Sheet
