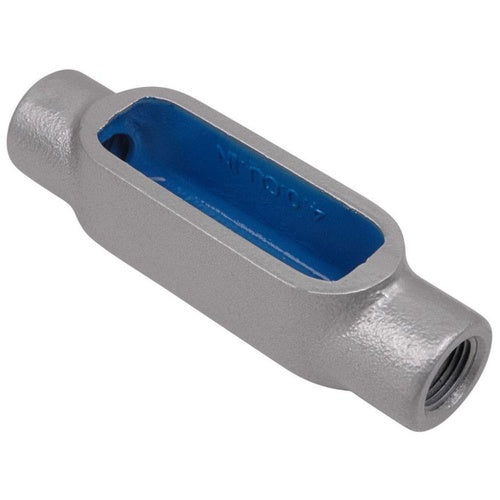

Ocal C38-4X-G Conduit Body C Form-8, UL-4X 1" Gray

Overview

Ocal C38-4X-G Conduit Body C Form-8, UL-4X 1" Gray

Product Specifications

• UPC: 70450802407
• Hub Size: 1 Inch
• Size: 7.31 Inch Length x 1.75 Inch Width x 1.94 Inch Height
• Installation: Screw, Threaded
• Material: Gray PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior, Stainless Steel Screw
• Form Type: Form 8
• Approval: UL, CSA
• Used On: Conduit
• Additional Information: Color Dark Gray; Enclosure Rating NEMA 4X; Includes O-Ring Seal, Cover and Screw
• Catalog Number: C38-4X-G
• Brand Name: Ocal
• Model: C
• Access Opening: Straight Side
• Configuration: C
• Cover Type: PVC Coated Cast Iron, 2 Mil Blue Urethane Coated Interior, 40 Mil PVC Coated Exterior
• Hub Location: Straight
• Number Of Hubs: 2
• Catalog Description: PVC COATED CONDUIT BODY, C SHAPE, FORM 8 UL-4X, SIZE 1 INCH/27 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Gray PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior, Stainless Steel Screw Material; 7.31 Inch Length X 1.75 Inch Width X 1.94 Inch Height Size; Conduit Used on; 1 Inch Hub Size; Screw, Threaded Installation; C Configuration; 2 Hub(S); UL, CSA Approval; PVC Coated Cast Iron, 2 mil Blue Urethane Coated Interior, 40 mil PVC Coated Exterior Cover Type; Straight Hub Location; Form 8 Form Type; Straight Side Access Opening; OCAL-BLUE[R] Brand; Color Dark Gray; Enclosure Rating NEMA 4X; Includes O-ring Seal, Cover and Screw; C Model
• Made In Usa: Yes
• Manufacturer: THOMAS & BETTS OCAL
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508024079
• SKU Name: ocal c384xg
