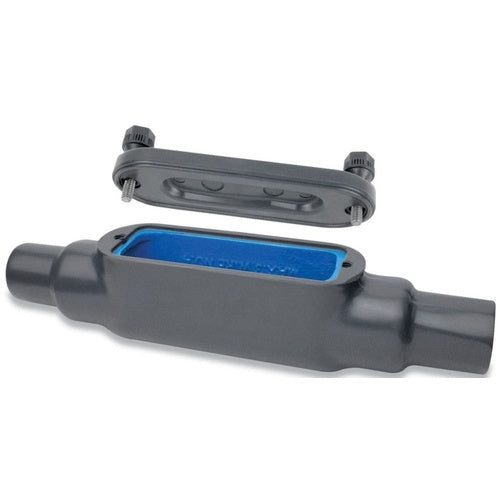

Ocal C58-4X-G Conduit Body C Form-8, UL-4X 1-1/2" Gray

Overview

Ocal C58-4X-G Conduit Body C Form-8, UL-4X 1-1/2" Gray

Product Specifications

• UPC: 70450802421
• Size: 10.38 Inch Length x 2.75 Inch Width x 2.78 Inch Height
• Material: 2 Mil Blue Urethane Interior/Exterior, Dark Gray 4 Mil PVC Coated Cast Iron Exterior
• Form Type: Form 8
• Approval: UL, CSA
• Additional Information: Enclosure Rating NEMA 4X; Includes Cover, O-Ring Seal, Stainless Steel Screw
• Catalog Number: C58-4X-G
• Brand Name: Ocal-Blue[R]
• Access Opening: Straight Side
• Configuration: C
• Cover Type: 2 Mil Blue Urethane Interior/Exterior, Dark Gray 4 Mil PVC Coated Cast Iron Exterior
• Hub Location: Straight
• Number Of Hubs: 2
• Hub Size: 1-1/2 Inch
• Catalog Description: PVC COATED CONDUIT BODY, C SHAPE, FORM 8 UL-4X, SIZE 1-1/2 INCH/41 METRIC, IRON, DARK GRAY
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: 2 mil Blue Urethane Interior/Exterior, Dark Gray 4 mil PVC Coated Cast Iron Exterior Material; 10.38 Inch Length X 2.75 Inch Width X 2.78 Inch Height Size; 1-1/2 Inch Hub Size; C Configuration; 2 Hub(S); UL, CSA Approval; 2 mil Blue Urethane Interior/Exterior, Dark Gray 4 mil PVC Coated Cast Iron Exterior Cover Type; Straight Hub Location; Form 8 Form Type; Straight Side Access Opening; OCAL-BLUE[R] Brand; Enclosure Rating NEMA 4X; Includes Cover, O-ring Seal, Stainless Steel Screw
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 704508024215
• SKU Name: ocal c584xg

Resources

• Manufacturer Spec Sheet
