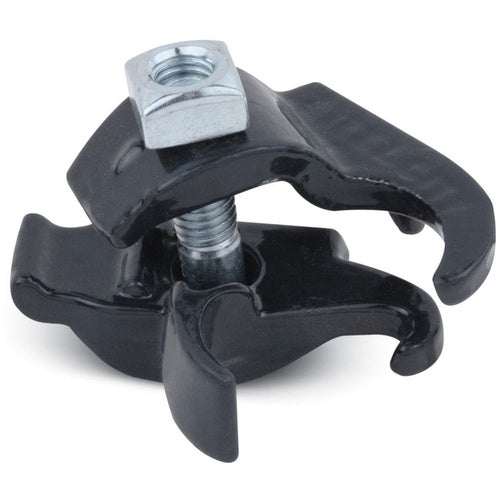

Ocal EC21/2-G PVC Coated Edge ClAMP 2-1/2" Gray

Overview

Ocal EC21/2-G PVC Coated Edge Clamp 2-1/2" Gray

Product Specifications

• UPC: 70450836494
• Application: Mounting Pipe Conduit
• Additional Information: Pipe Size 2-1/2 Inch
• Catalog Number: EC21/2-G
• Model: EC
• Type: Edge
• Maximum Jaw Capacity: 2.875 Inch
• Supplied With Screw: Yes
• Screw Type: Hex Head
• Material: Malleable Iron
• Finish: Electrogalvanized
• Catalog Description: PVC COATED EDGE CLAMP, PIPE SIZE 2-1/2 INCH/63 METRIC, MALLEABLE IRON, DARK GRAY
• Category: Miscellaneous Fastening Hardware
• Full Technical Description: Edge Type; Malleable Iron Material; Electrogalvanized Finish; 2.875 Inch Max. Jaw Capacity; Mounting Pipe Conduit Application; Hex Head Screw Type; Yes Supplied With Screw; Pipe Size 2-1/2 Inch; EC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Beam Clamp
• Unspsc: 31162905
• UPC 12 Digit: 704508364946
• SKU Name: ocal ec21/2g

Resources

• Manufacturer Spec Sheet
