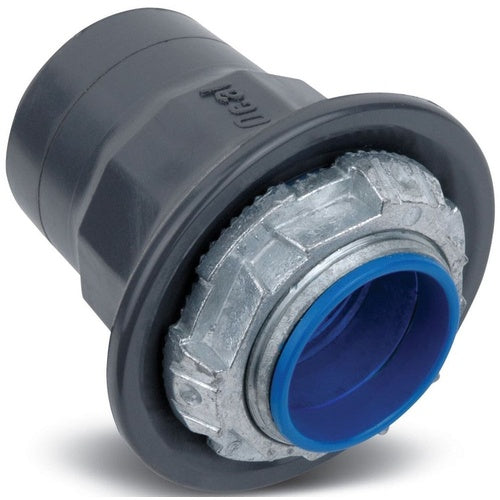

Ocal HUB1/2-G PVC Coated Zinc Hub Connector 1/2" Dark-Gray

Overview

Ocal HUB1/2-G PVC Coated Zinc Hub Connector 1/2" Dark-Gray

Product Specifications

• UPC: 70450838811
• Material: PVC Coated Zinc (Hub), Nitrile (Sealing Ring)
• Approval: UL 94, CSA
• Used On: Conduit
• Additional Information: Color Dark Gray; Maximum Panel Thickness 0.19 Inch; Temperature Rating 105 Deg C
• Catalog Number: HUB1/2-G
• Brand Name: Ocal
• Model: HUB
• Type: Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 1/2 Inch
• Size: 1.44 Inch Diameter x 1.56 Inch Length
• Constructional Feature: Corrosion Resistant
• Catalog Description: PVC COATED ZINC HUB CONNECTOR WITH THERMOPLASTIC INSULATED THROAT, PIPE SIZE 1/2 INCH/16 METRIC, OVERALL DIAMETER 1.44 INCH/36.58 MILLIMETERS, MAXIMUM PANEL THICKNESS 0.19 INCH/4.83 MILLIMETERS, THROAT DIAMETER 0.59 INCH/14.99 MILLIMETERS, NITRILE RUBBER (BUNA-N) SEALING RING, DARK GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; PVC Coated Zinc (Hub), Nitrile (Sealing Ring) Material; 1.44 Inch Diameter X 1.56 Inch Length Size; Conduit Used on; UL 94, CSA Approval; 1/2 Inch Trade Size; Corrosion Resistant; Thermoplastic Insulated Throat Type; OCAL-BLUE[R] Brand; Color Dark Gray; Maximum Panel Thickness 0.19 Inch; Temperature Rating 105 Deg C; HUB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 704508388119
• SKU Name: ocal hub1/2g

Resources

• Manufacturer Spec Sheet
