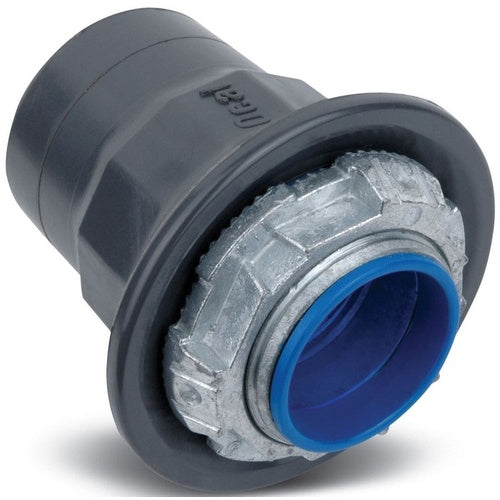

Ocal HUB-11/2Sa-G PVC Coated Aluminum Hub Connector 1-1/2" Dark-Gray

Overview

Ocal HUB-11/2Sa-G PVC Coated Aluminum Hub Connector 1-1/2" Dark-Gray

Product Specifications

• UPC: 70450838828
• Material: Dark Gray PVC Coated Aluminum Hub, Nitrile Buna-N Sealing Ring
• Approval: UL 94
• Used On: Rigid Conduit
• Additional Information: Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: HUB11/2SA-G
• Model: HUB
• Type: Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 1-1/2 Inch
• Size: 2.75 Inch Dia x 1.88 Inch L
• Constructional Feature: Corrosion Resistant
• Ground Type: Locknut Bonding Screw
• Catalog Description: PVC COATED ALUMINUM HUB CONNECTOR WITH THERMOPLASTIC INSULATED THROAT, PIPE SIZE 1-1/2 INCH/41 METRIC, OVERALL DIAMETER 2.75 INCH/69.85 MILLIMETERS, MAXIMUM PANEL THICKNESS 0.25 INCH/6.35 MILLIMETERS, THROAT DIAMETER 1.53 INCH/38.86 MILLIMETERS, NITRILE RUBBER (BUNA-N) SEALING RING, DARK GRAY
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Threaded Type; Dark Gray PVC Coated Aluminum Hub, Nitrile Buna-N Sealing Ring Material; 2.75 Inch Dia X 1.88 Inch L Size; Rigid Conduit Used on; UL 94 Approval; Locknut Bonding Screw; 1-1/2 Inch Trade Size; Corrosion Resistant; Thermoplastic Insulated Throat Type; OCAL-BLUE[R] Brand; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C; HUB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 704508388287
• SKU Name: ocal hub11/2sag

Resources

• Manufacturer Spec Sheet
