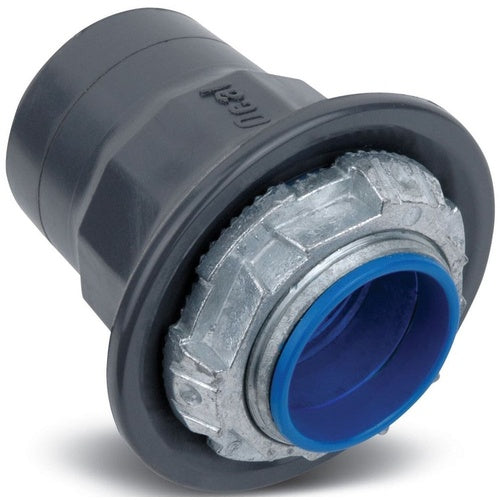

Ocal HUB-31/2-G PVC Coated Zinc Hub Connector 3-1/2" Dark-Gray

Overview

Ocal HUB-31/2-G PVC Coated Zinc Hub Connector 3-1/2" Dark-Gray

Product Specifications

• UPC: 70450838875
• Material: PVC Coated Zinc (Hub), Nitrile (Sealing Ring)
• Approval: UL 94, CSA
• Used On: Conduit
• Additional Information: Color Dark Gray; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C
• Catalog Number: HUB31/2-G
• Brand Name: Ocal
• Model: HUB
• Type: Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 3-1/2 Inch
• Size: 5 Inch Diameter x 2.72 Inch Length
• Constructional Feature: Corrosion Resistant
• Catalog Description: PVC COATED ZINC HUB CONNECTOR WITH THERMOPLASTIC INSULATED THROAT, PIPE SIZE 3-1/2 INCH/91 METRIC, OVERALL DIAMETER 5.00 INCH/127.00 MILLIMETERS, MAXIMUM PANEL THICKNESS 0.25 INCH/6.35 MILLIMETERS, THROAT DIAMETER 3.41 INCH/86.61 MILLIMETERS, NITRILE RUBBER (BUNA-N) SEALING RING, DARK GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; PVC Coated Zinc (Hub), Nitrile (Sealing Ring) Material; 5 Inch Diameter X 2.72 Inch Length Size; Conduit Used on; UL 94, CSA Approval; 3-1/2 Inch Trade Size; Corrosion Resistant; Thermoplastic Insulated Throat Type; OCAL-BLUE[R] Brand; Color Dark Gray; Maximum Panel Thickness 1/4 Inch; Temperature Rating 105 Deg C; HUB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 704508388751
• SKU Name: ocal hub31/2g

Resources

• Manufacturer Spec Sheet
